Testing and measuring equipment
PDF

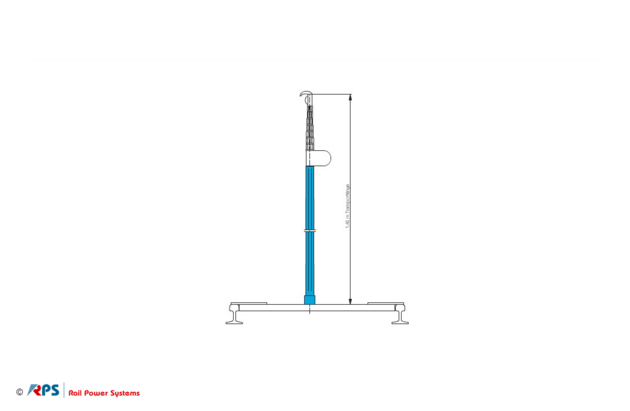

Höhenmessstange
3EGF008854
For measuring spacing of live overhead contact lines components
For rated voltages up to 30 kV AC; 16,7 Hz and up to 3 kV DC
Use in precipitation and fog
CE mark
Support rail and carrying case included
Old ID: 3EGF011978
Variants
Request
Variants
Mechanical values
Material ID
Name
Material
Weight
Height
Nominal voltage
3EGF008854
Höhenmessstange
G-CuSn10Zn
4,54 kg
142 - 800 mm
30 kV AC / 3 kV DC kV
PDF
Request
