3EGF011824

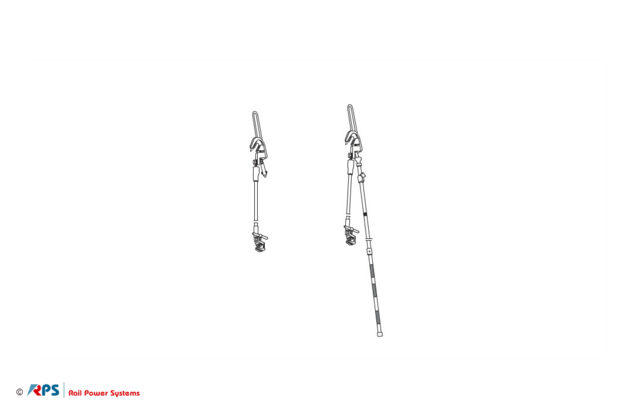

for conductor of Ø 4.5-35 mm, with ground wire, conductor and universal clamp, for connection to ball pin Ø 25 mm, with ground rod 3EGF011826.
Short circuit current: 36,5 kA

Request

Variants

Material ID Build Type Weight Rope Q Drawing Number
3EGF011824 Rope lenght: 4 m 10,5 kg 50 mm² Gw 715.01. Bl. 19 PDF Request
