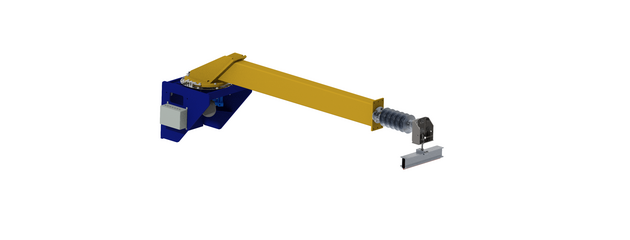

Swivel arm for assembly halls SAM

PDF

OSS Swivel arm (SAM)
3EGF021466

More information: Data sheet

TracFeed® SAM OSS Swivel arm MANUAL_EN Download

Request

Variants

Material ID Name Build Type Place of operation Mounting length Length Nominal voltage Supply frequency
3EGF030063 OSS Swivel arm (SAM) with motor Maintenance halls MVK 2000 mm 1440 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF030064 OSS Swivel arm (SAM) ohne Motor Montagehallen MVK 2000 mm 1440 mm PDF Request
3EGF030051 OSS Swivel arm (SAM) with motor Maintenance halls MVK 2500 mm 1940 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF030052 OSS Swivel arm (SAM) without motor Maintenance halls MVK 2500 mm 1940 mm PDF Request
3EGF021466 OSS Swivel arm (SAM) with motor Maintenance halls MVK 3000 mm 2440 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF021872 OSS Swivel arm (SAM) without motor Maintenance halls MVK 3000 mm 2440 mm PDF Request
3EGF030053 OSS Swivel arm (SAM) with motor Maintenance halls MVK 3500 mm 2940 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF030058 OSS Swivel arm (SAM) without motor Maintenance halls MVK 3500 mm 2940 mm PDF Request
3EGF030047 OSS Swivel arm (SAM) with motor Maintenance halls MVK 4000 mm 3440 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF030048 OSS Swivel arm (SAM) without motor Maintenance halls MVK 4000 mm 3440 mm PDF Request
3EGF030062 OSS Swivel arm (SAM) with motor Maintenance halls MVK 4500 mm 3940 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF030061 OSS Swivel arm (SAM) without motor Maintenance halls MVK 4500 mm 3940 mm PDF Request
3EGF030049 OSS Swivel arm (SAM) with motor Maintenance halls MVK 5000 mm 4440 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF030050 OSS Swivel arm (SAM) without motor Maintenance halls MVK 5000 mm 4440 mm PDF Request
3EGF030060 OSS Swivel arm (SAM) with motor Maintenance halls MVK 5500 mm 4940 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF030059 OSS Swivel arm (SAM) without motor Maintenance halls MVK 5500 mm 4940 mm PDF Request
3EGF021853 OSS Swivel arm (SAM) with motor Maintenance halls MVK 6000 mm 5440 mm 0,23/0,40-0,265/0,46 kV 50-60 Hz PDF Request
3EGF021854 OSS Swivel arm (SAM) without motor Maintenance halls MVK 6000 mm 5440 mm PDF Request
