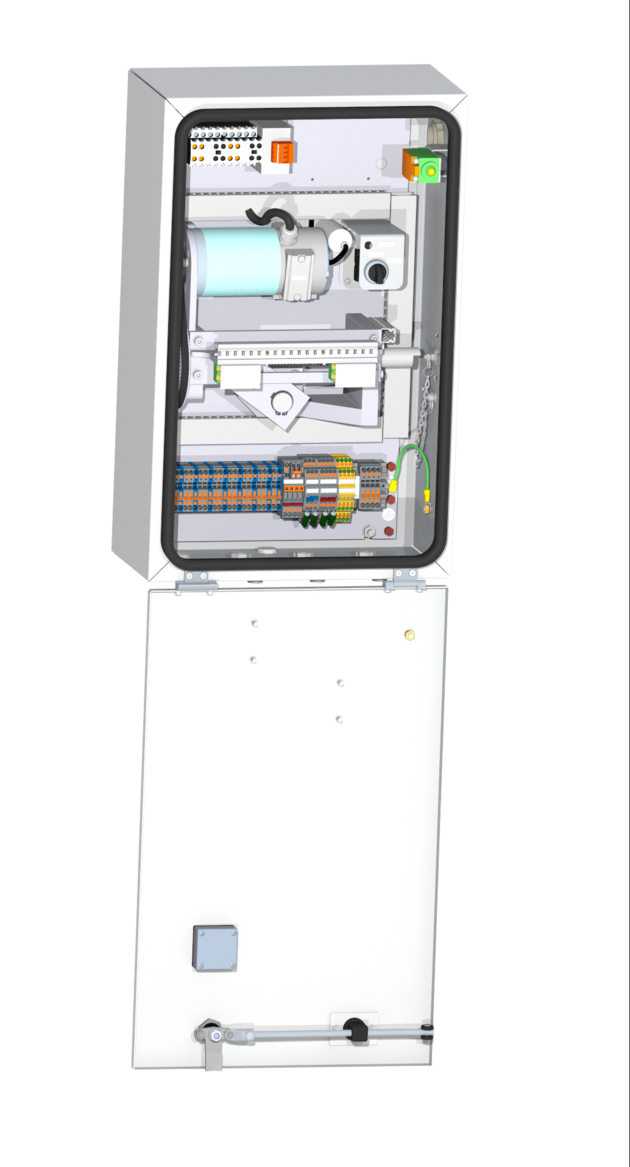

Remote motor drive standard 230 V AC
3EGF020333

The type 1.13-1 remote motor drive is the standard remote remote drive for the Deutsche Bahn from the Ebs-Werk.
The motor drive has the following special features:

  • Test for 50,000 switching cycles
  • Operating selector switch
  • Potential-free signaling contacts
  • Switching stroke 100 / 200 mm
  • Door opener contact



More information: Data sheet

TracFeed® SFA Electromechanical remote motor drive MANUAL_EN Download

Request

Variants

Material ID Name Ebs Build Type Weight Dimensions Protection system Enclosure material Swivel lever lock Type of interlocking Switching delay

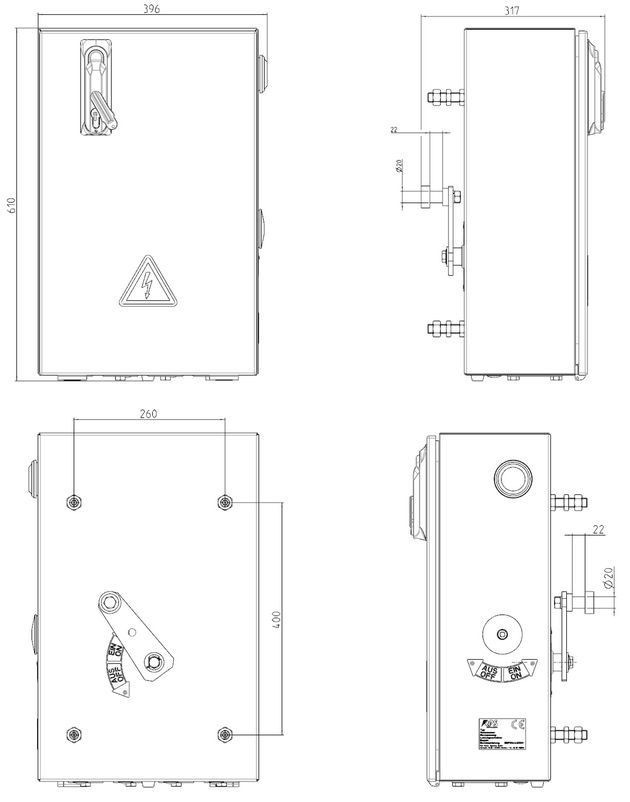

3EGF020333 Remote motor drive standard 230 V AC Ebs 09.12.03 A 1.13-1 31 kg 600 x 380 x 210 mm IP 54 Edelstahl Bartschlüssel (Standard DB) 450 Nm 2 …4 s PDF Request
Material ID Name Supply frequency Nominal current Continuous current necessary
3EGF020333 Remote motor drive standard 230 V AC 50/60 Hz 2,5 A nein PDF Request
