Switch drives

PDF

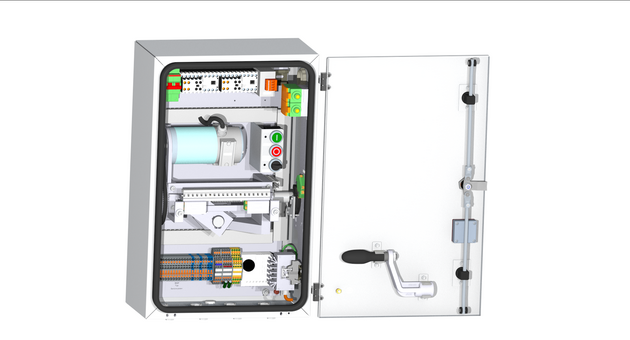

Remote motor drive 230 V AC local control
3EGF021676

Type 1.25 is a variant of the remote motor drive for local control with additional safety mechanisms.
The motor dirve has the following special features:

  • Test for 50,000 switching cycles
  • Operating mode selector switch
  • Potential-free signaling contacts
  • Switching stroke 100 / 200 mm
  • Heating with thermostat
  • Additional status signals
  • Crank-handle in housing

More information: Data sheet

TracFeed® SFA Electromechanical remote motor drive MANUAL_EN Download

Request

Variants

Material ID Name Build Type Weight Dimensions Protection system Enclosure material Swivel lever lock Type of interlocking Switching delay
3EGF021676 Remote motor drive 230 V AC local control 1.25 31 kg 600 x 380 x 210 mm IP 54 Edelstahl Bartschlüssel (Standard DB) 450 Nm 2 …4 s PDF Request
Material ID Supply frequency Nominal current Continuous current necessary
3EGF021676 50/60 Hz 2,5 A ja PDF Request
