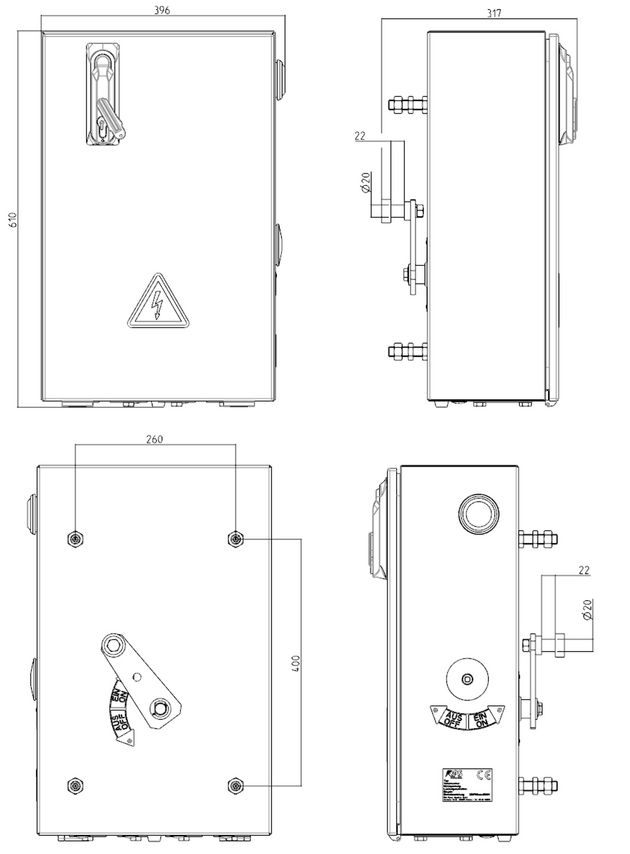

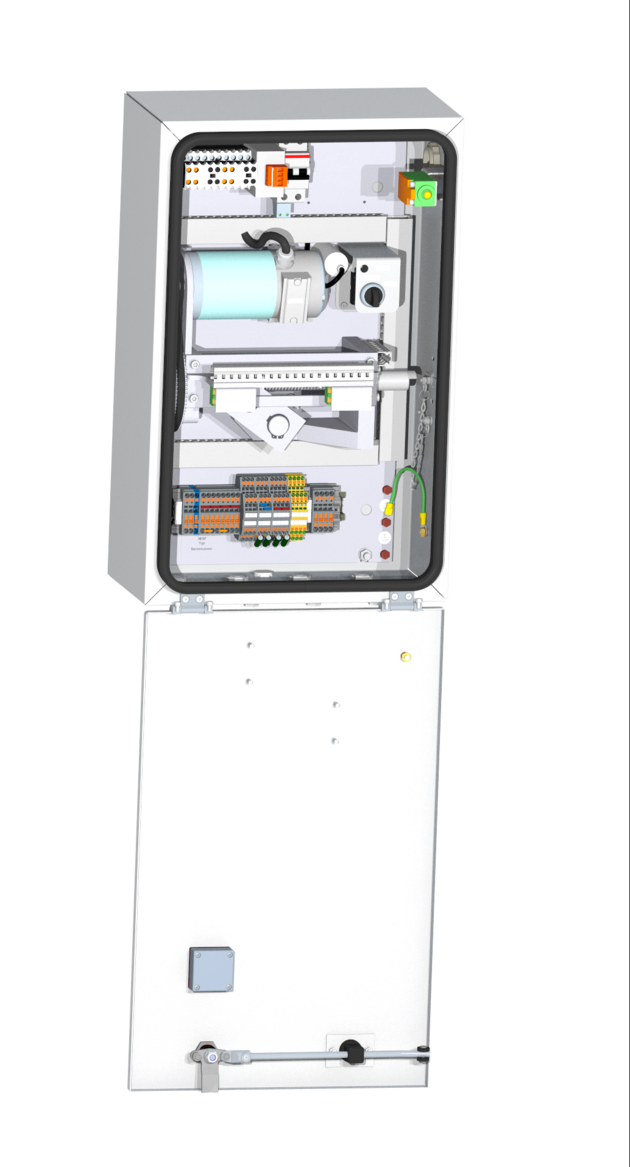

Remote motor drive 230 V AC for OLSP-instalations
3EGF020334

The type 1.9-1 is a remote motor drive with connections  for the sensors of the earthing switches.
The motor drive has the following special features:

  • Test for 50,000 switching cycles
  • Operating selector switch
  • Potential-free signaling contacts
  • Door opener contact
  • Circuit breaker


More information: Data sheet

TracFeed® SFA Electromechanical remote motor drive MANUAL_EN Download



Request

Variants

Material ID Name Build Type Weight Dimensions Interface 1 Protection system Enclosure material Swivel lever lock Type of interlocking Switching delay
3EGF020334 Remote motor drive 230 V AC for OLSP-instalations 1.9-1 31 kg 600 x 380 x 210 mm Referenz: DB AG IP 54 Stainless steel Bit key (Standard DB) 450 Nm 2 …4 s s PDF Request
Material ID Supply frequency Nominal current Continuous current necessary
3EGF020334 50/60 Hz 2,5 A no PDF Request
