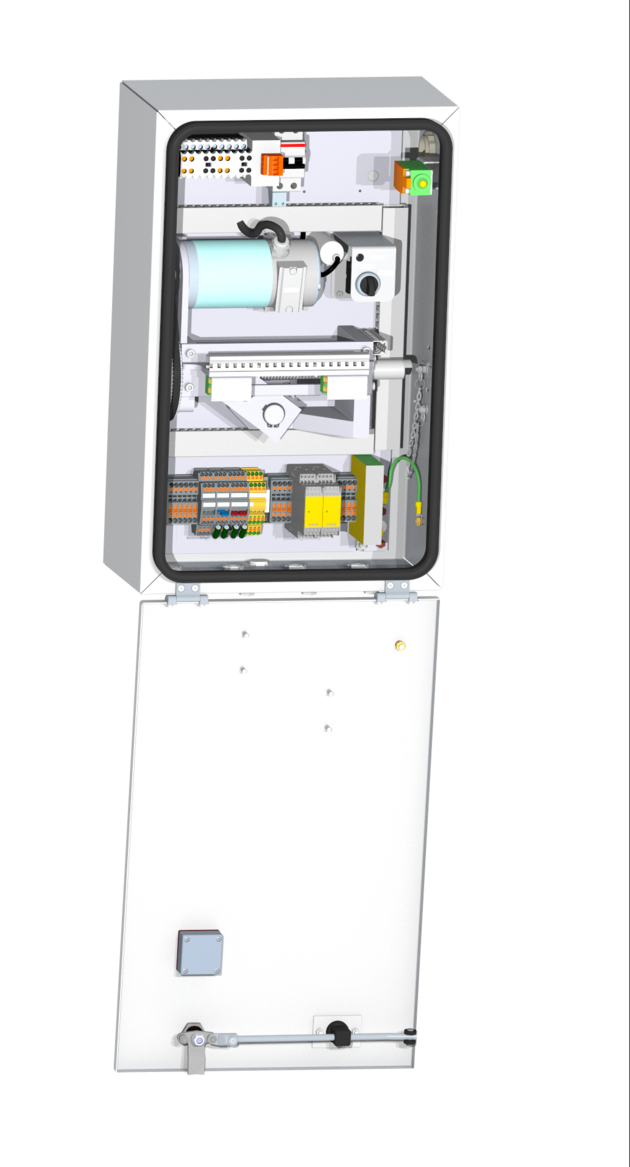

Remote motor drive 230 V AC for OLSP-instalations
3EGF021515

The type 1.24 is the standard remote motor drive of the deutsche Bahn from the Ebs factory for use in OLSP systems.
The motor drive has the following special features:

  • Test for 50,000 switching cycles
  • Operating selector switch
  • Potential-free signaling contacts
  • Switching stroke 100 / 200 mm
  • Door opener contact
  • Circuit breaker

More information: Data sheet

TracFeed® SFA Electromechanical remote motor drive MANUAL_EN Download

Request

Variants

Material ID Name Ebs Build Type Weight Dimensions Protection system Enclosure material Swivel lever lock Type of interlocking Switching delay

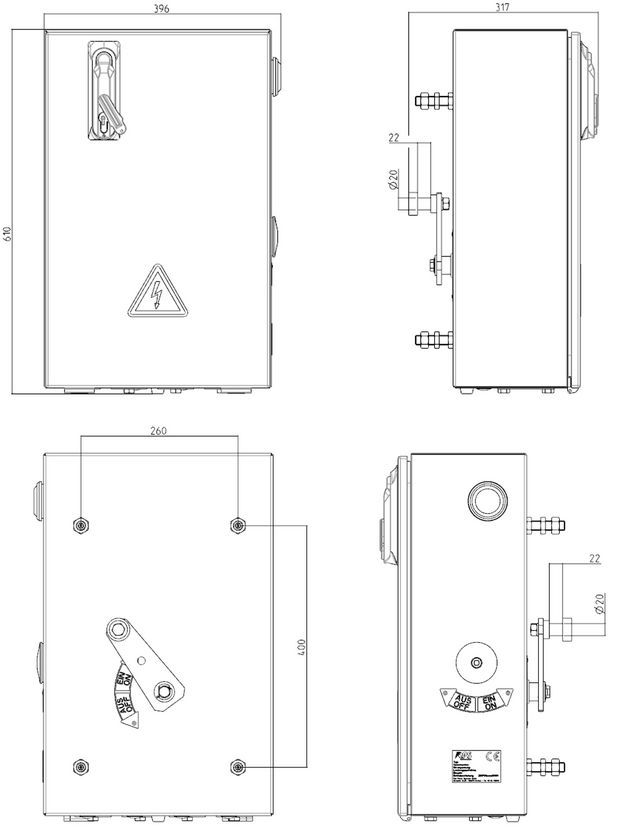

3EGF021515 Remote motor drive 230 V AC for OLSP-instalations Ebs 09.12.03 B 1.24 31 kg 600 x 380 x 210 mm IP 54 Edelstahl Bartschlüssel (Standard DB) 450 Nm 2 …4 s PDF Request
Material ID Supply frequency Nominal current Continuous current necessary
3EGF021515 50/60 Hz 2,5 A nein PDF Request
