Disconnector

PDF

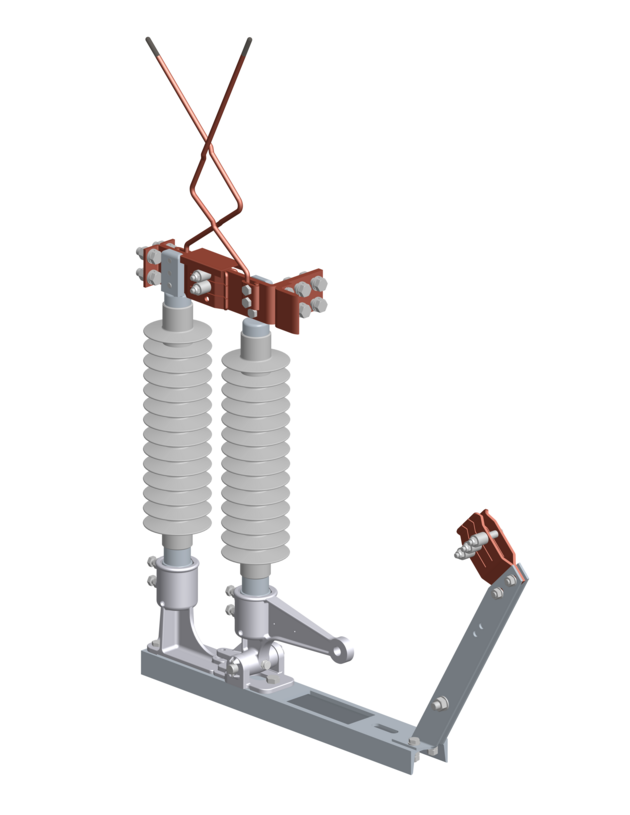

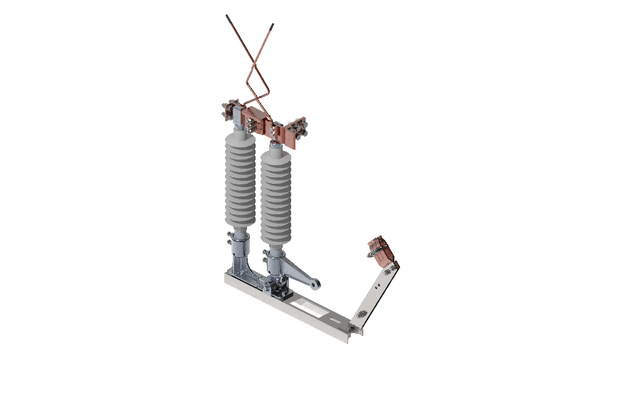

Disconnector 25 kV with composite insulator with earthing contact
3EGF021814

Request

Variants

Material ID Name Weight Dimensions Switching force contacts Material contacts Number of poles Mechanical endurance class in accordance with EN 50152-2
3EGF021813 Disconnector 25 kV with composite insulator without earthing contact 31 kg 798x204x1402 mm 250 N Cu-ETP 1 30.000 PDF Request
3EGF021814 Disconnector 25 kV with composite insulator with earthing contact 37 kg 1067x204x1402 mm 250 N Cu-ETP 1 30.000 PDF Request
Material ID Name Nominal voltage Nominal current Creepage Path Rated impulse voltage Short-duration power-frequency withstand voltage Rated short-time withstand current
3EGF021813 Disconnector 25 kV with composite insulator without earthing contact 25 kV 1650 A 1590 mm 250 kV 95 kV 40 kA PDF Request
3EGF021814 Disconnector 25 kV with composite insulator with earthing contact 25 kV 1650 A 1590 mm 250 kV 95 kV 40 kA PDF Request
