Disconnector with composite insulator

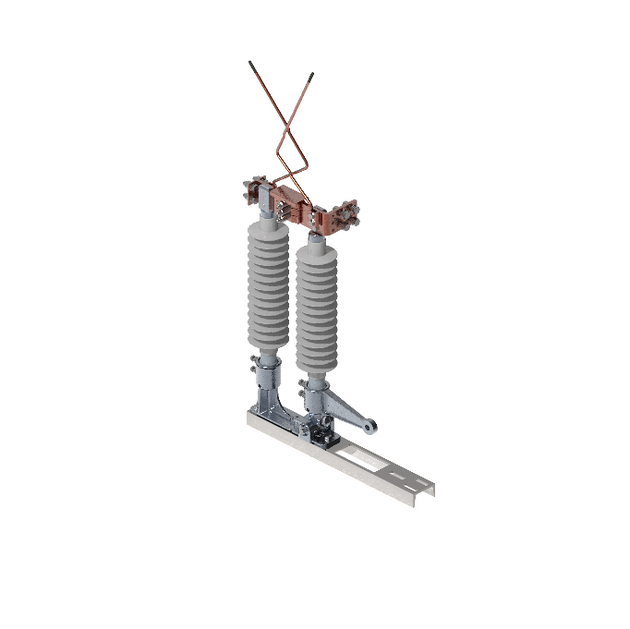

Disconnector 25 kV with composite insulator without earthing contact
3EGF021813

Material ID	Name	Weight	Dimensions	Switching force contacts	Material contacts	Number of poles	Mechanical endurance class in accordance with EN 50152-2

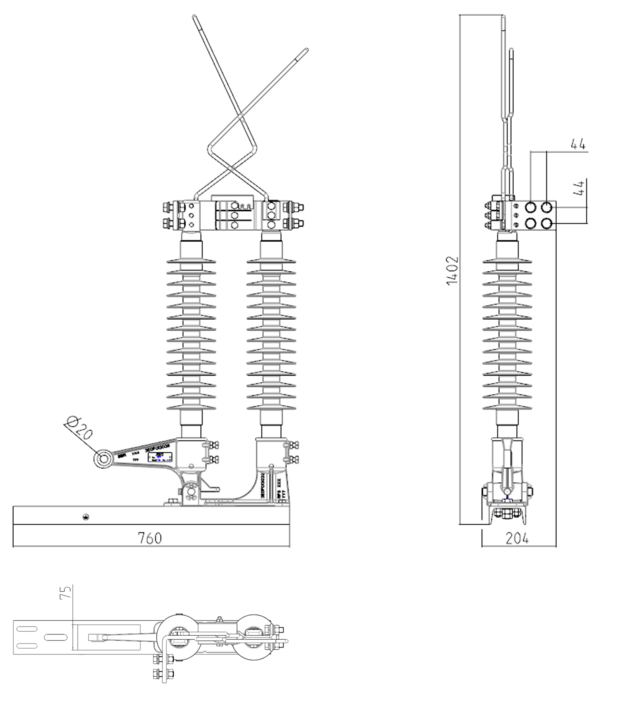

3EGF021813	Disconnector 25 kV with composite insulator without earthing contact	31 kg	798x204x1402 mm	250 N	Cu-ETP	1	30.000	PDF	Request
3EGF021814	Disconnector 25 kV with composite insulator with earthing contact	37 kg	1067x204x1402 mm	250 N	Cu-ETP	1	30.000	PDF	Request

Material ID	Name	Nominal voltage	Nominal current	Creepage Path	Rated impulse voltage	Short-duration power-frequency withstand voltage	Rated short-time withstand current
3EGF021813	Disconnector 25 kV with composite insulator without earthing contact	25 kV	1650 A	1590 mm	250 kV	95 kV	40 kA	PDF	Request
3EGF021814	Disconnector 25 kV with composite insulator with earthing contact	25 kV	1650 A	1590 mm	250 kV	95 kV	40 kA	PDF	Request
