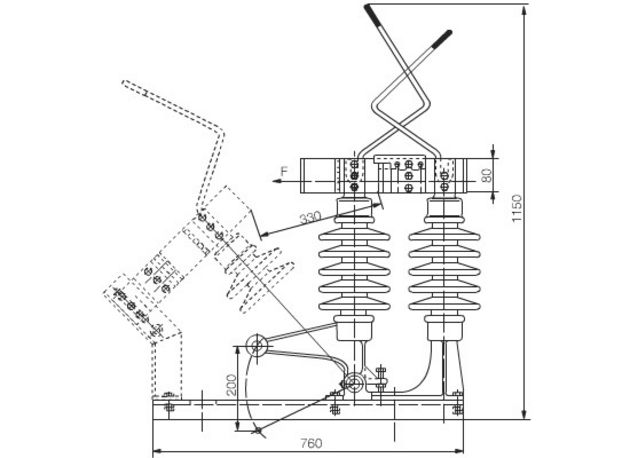

Disconnector 25 kV with ceramic insulator without earthing contact
3EGF010579

Request

Variants

Material ID Name Ebs Weight Dimensions Switching force contacts Material contacts Number of poles Mechanical endurance class in accordance with EN 50152-2
3EGF010579 Disconnector 25 kV with ceramic insulator without earthing contact Ebs 09.07.20 A 35,7 kg 760x210x1150 mm 250 N Cu-ETP 1 30.000 PDF Request
3EGF010580 Disconnector 25 kV with ceramic insulator with earthing contact Ebs 09.07.20 B 43 kg 820x210x1150 mm 250 N Cu-ETP 1 30.000 PDF Request
Material ID Name Nominal voltage Nominal current Creepage Path Rated impulse voltage Short-duration power-frequency withstand voltage
3EGF010579 Disconnector 25 kV with ceramic insulator without earthing contact 15 kV 1700 A 760 mm 150 kV 75 kV PDF Request
3EGF010580 Disconnector 25 kV with ceramic insulator with earthing contact 15 kV 1700 A 760 mm 150 kV 75 kV PDF Request
