Disconnector 15 kV with vacuum arc-extinguishing chamber

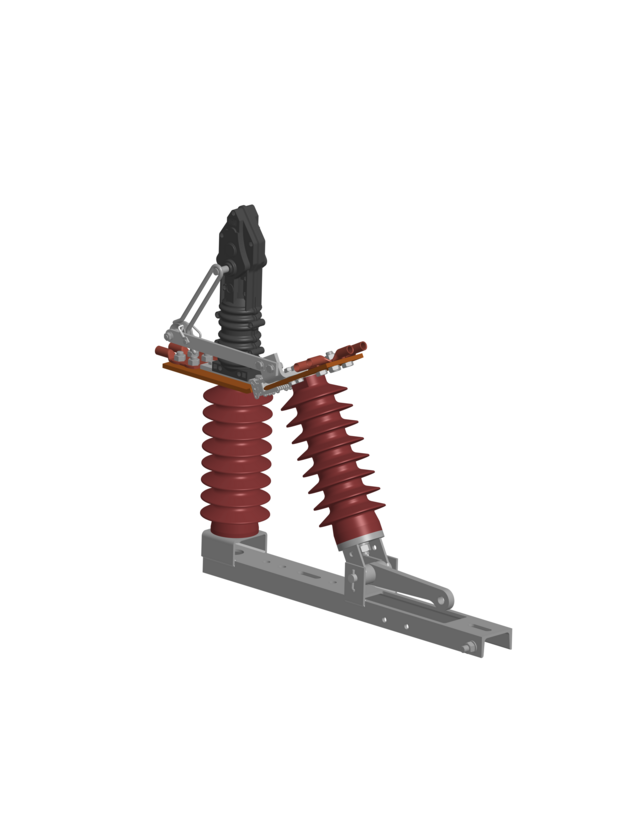

Load disconnector 15 kV with vacuum quencing chamber
3EGF012132

Material ID	Name	Ebs	Weight	Dimensions	Number of poles

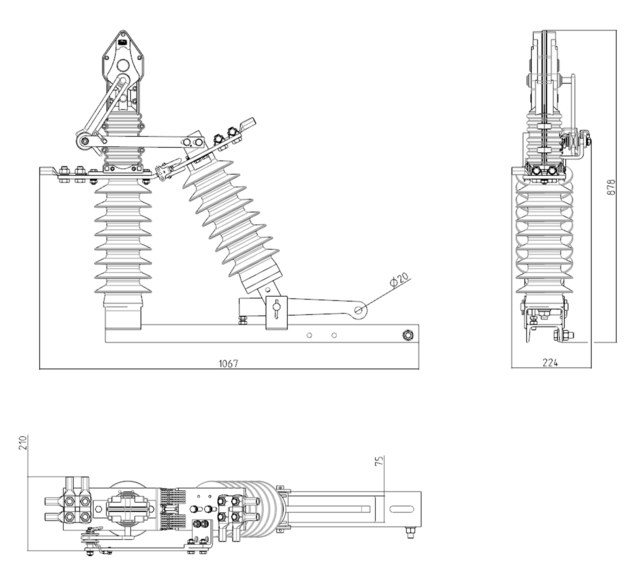

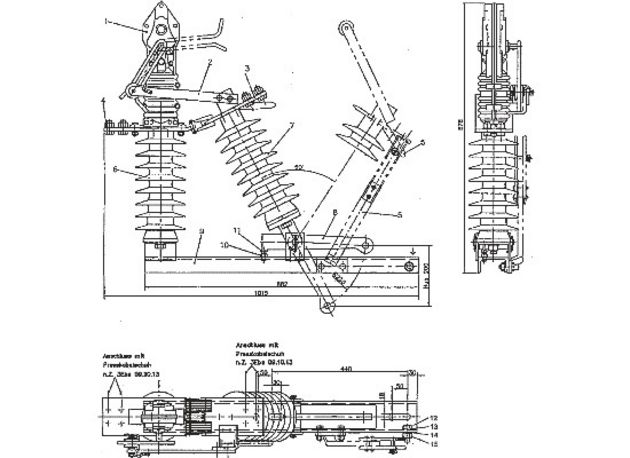

3EGF012132	Load disconnector 15 kV with vacuum quencing chamber	Ebs 09.04.20 A	45 kg	1015x878x202 mm	1	PDF	Request

Material ID	Name	Nominal voltage	Nominal current	Creepage Path	Rated impulse voltage	Short-duration power-frequency withstand voltage	Rated short-time withstand current
3EGF012132	Load disconnector 15 kV with vacuum quencing chamber	25 kV	2000 A	765 mm	170 kV	95 kV	50 kA	PDF	Request
