Earthing switch

PDF

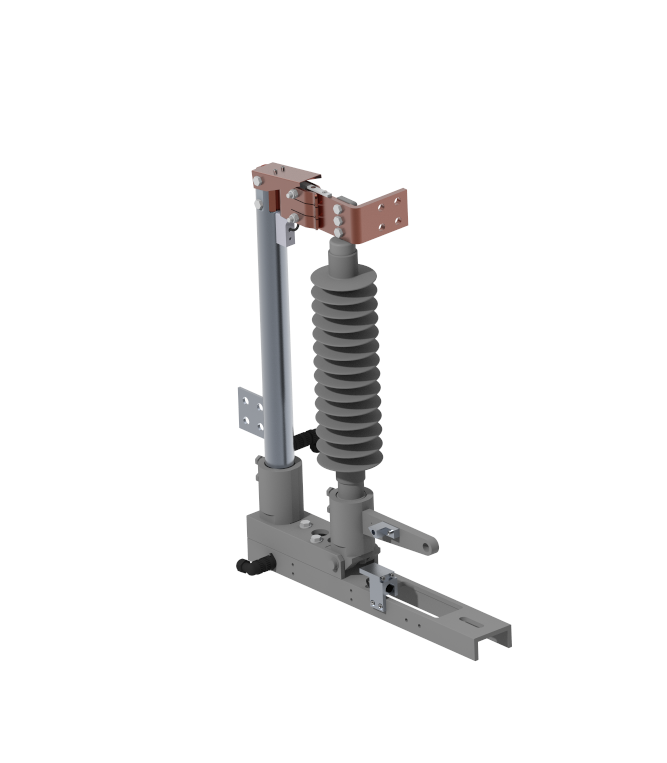

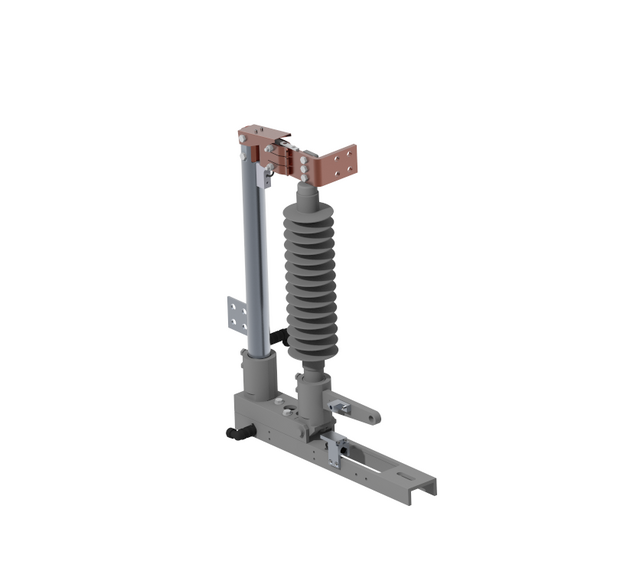

Disconnector 25 kV with ceramic insulator without earthing contact
3EGF021020

Request

Variants

Material ID Name Ebs Weight Dimensions Switching force contacts Material contacts Number of poles Mechanical endurance class in accordance with EN 50152-2

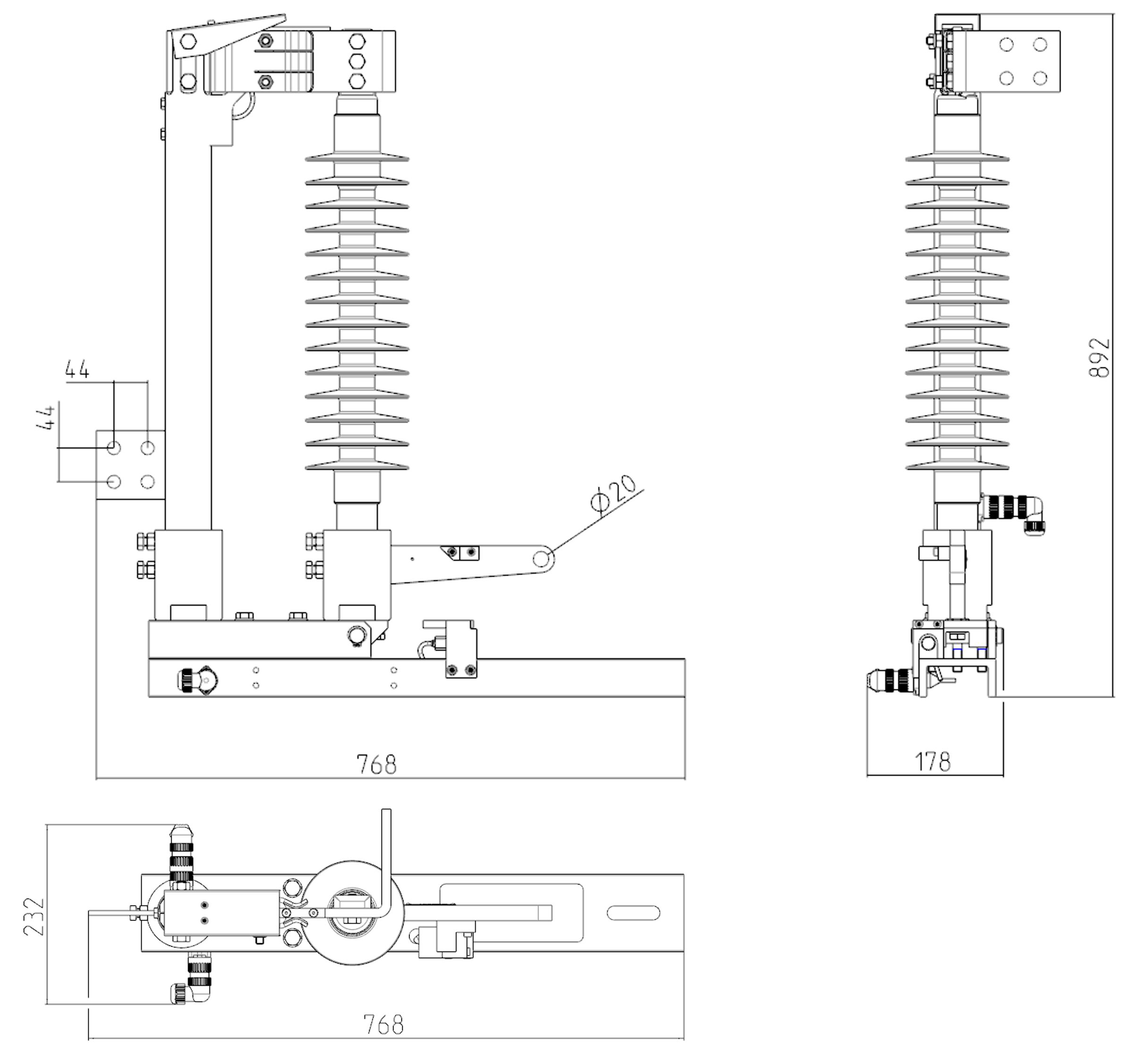

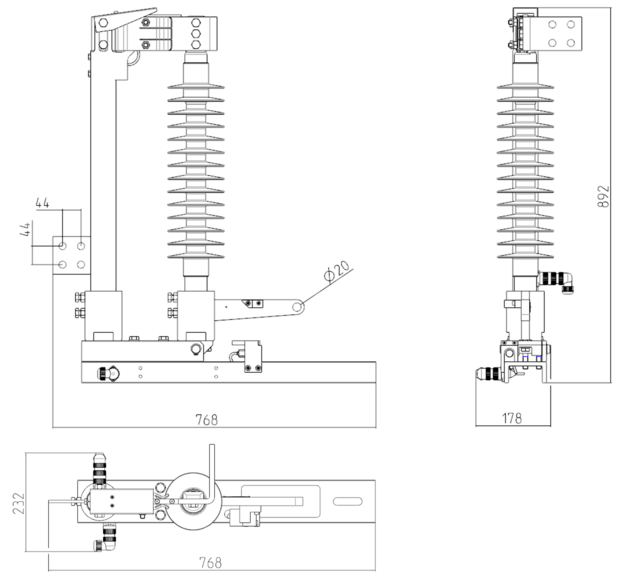

3EGF021020 Disconnector 25 kV with ceramic insulator without earthing contact Ebs 09.08.36 27 kg 745x202x1382 mm 250 N Cu-ETP 1 30.000 PDF Request
Material ID Name Nominal voltage Creepage Path Rated impulse voltage Short-duration power-frequency withstand voltage Rated short-time withstand current
3EGF021020 Disconnector 25 kV with ceramic insulator without earthing contact 25 kV 915 mm 250 kV 95 kV 40 kA PDF Request
