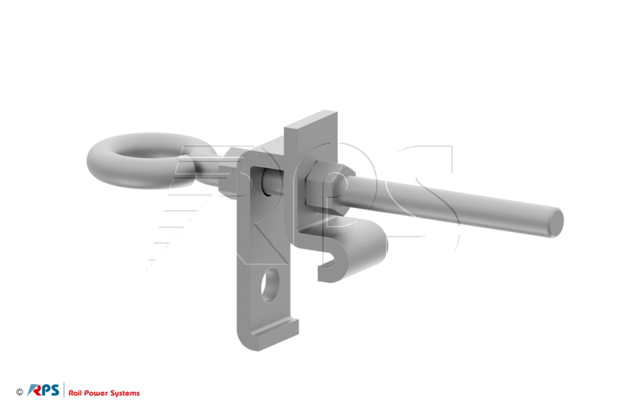

Linkage guide at a lattice steel mast
3EGF017961
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight
3EGF017961
Linkage guide at a lattice steel mast
Ebs 09.10.05 C
St37
1,2 kg
PDF
Request
