Tension Spring until 6 kN - Tension Spring

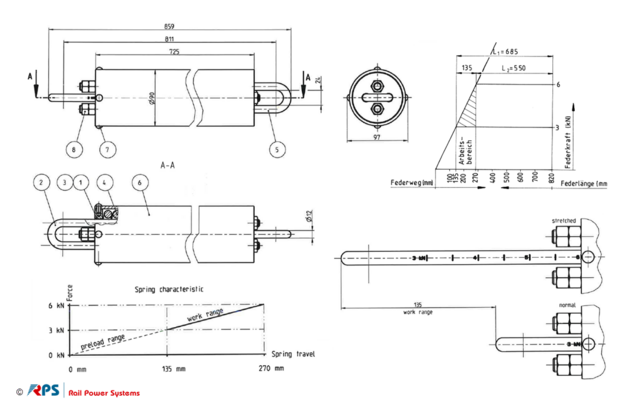

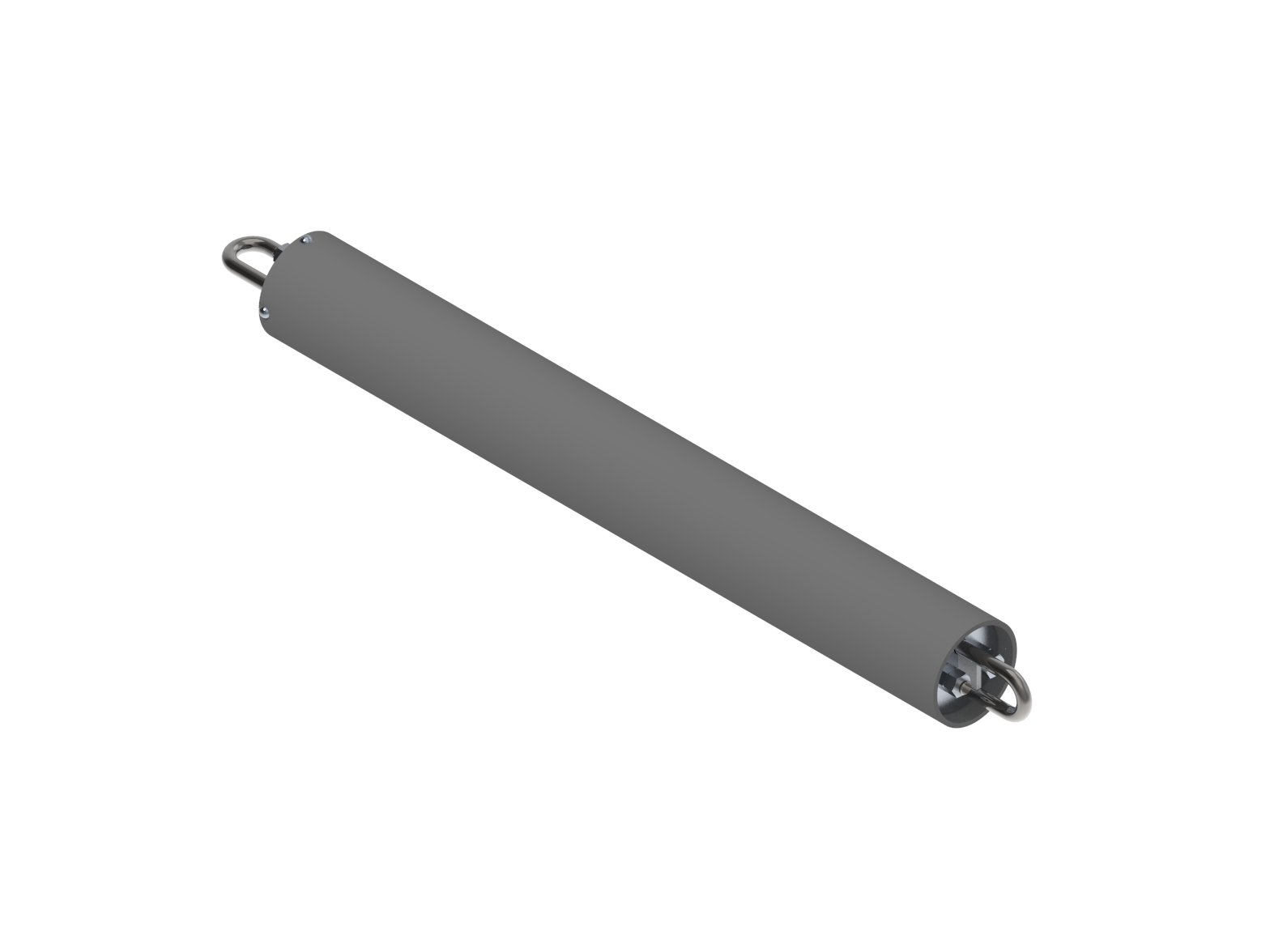

Tension Spring 6 kN Range 135 mm
3EGF002272

Max. span length: 135 mm
3-6 kN

TracFeed® NSV Tensioning spring MANUAL Download

Material ID	Name	Ebs	Weight	Nominal Force	L
3EGF006315	Tension Spring 3 kN Range 50 mm		3 kg	3 kN	350 mm	PDF	Request
3EGF006367	Tension Spring 3 kN Range 100 mm		6 kg	3 kN	550 mm	PDF	Request
3EGF002272	Tension Spring 6 kN Range 135 mm	Ebs 11.11.19-1	9 kg	6 kN	860 mm	PDF	Request
