Section insulators DC upt to 3 kV
PDF

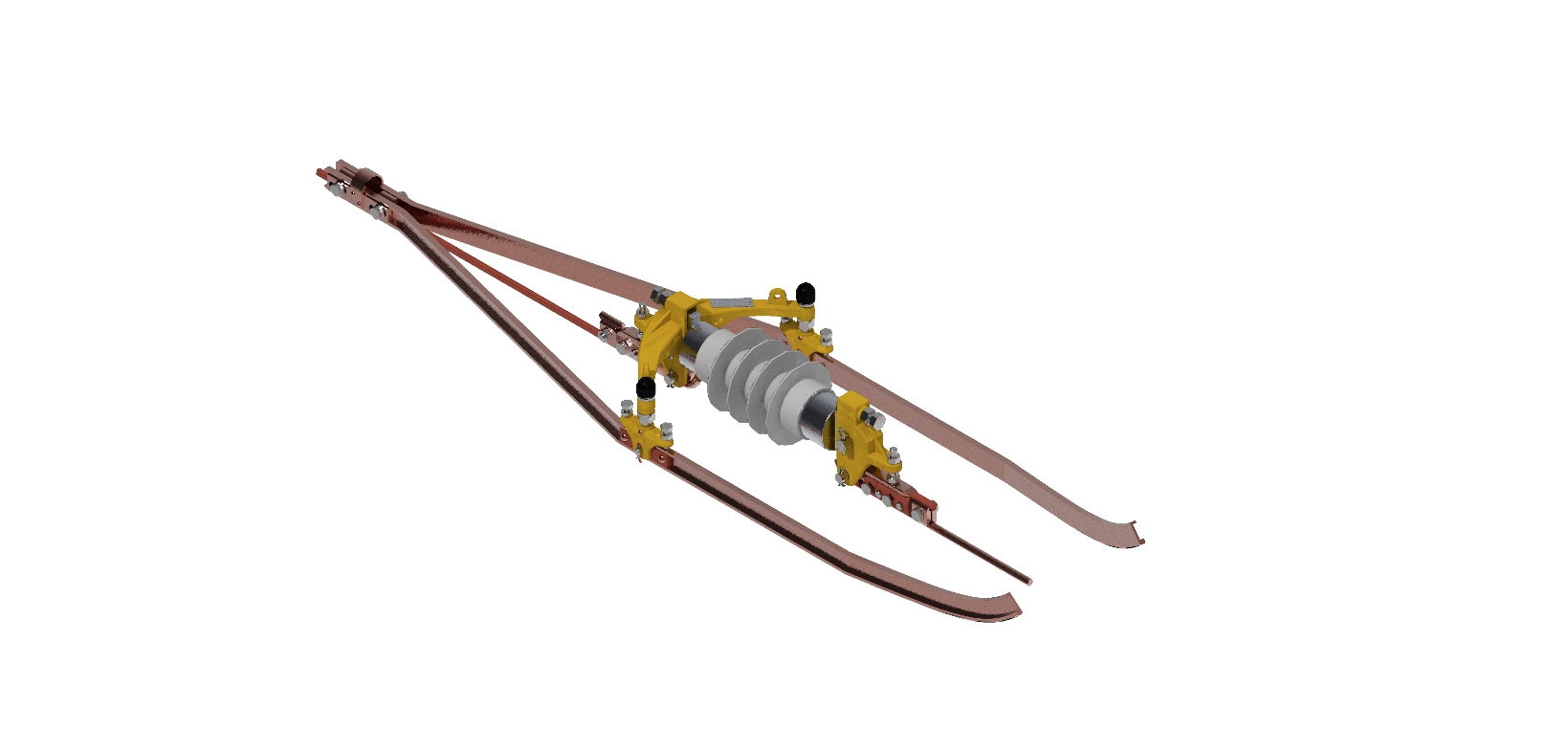

Section insulator 3 kV with composite insualtors
3EGF021387
Spark plugs: no
Number of pantograph cycles: 2 million
Breaking force: 88 kN
Variants
Request
Variants
Mechanical values
Electrical values
Material ID
Name
Material
Weight
Nominal Force
Contact Wire
Maximum operating speed
Length
Number of contact wires
3EGF021387
Section insulator 3 kV with composite insualtors
Plastic insulator
22 kg
30 kN
AC 80 -150
160 km/h
1595 mm
1
PDF
Request
Material ID
Name
Nominal voltage
Creepage Path
Rated impulse voltage
Power-frequency withstand voltage, wet
3EGF021387
Section insulator 3 kV with composite insualtors
3 kV
444 mm
30 kV
14 kV
