Section insulators DC upt to 3 kV
PDF

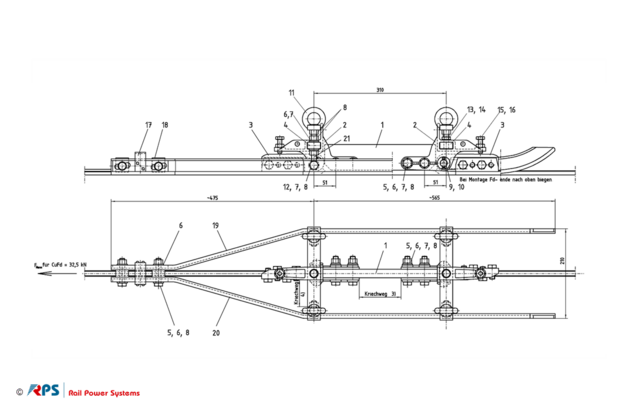

Section insualtor 3 kV with GRP plates
3EGF011680
Spark plugs: no
Number of pantograph cycles: 2 million
Breaking force: 45 kN
Variants
Request
Variants
Mechanical values
Electrical values
Material ID
Name
Material
Weight
Nominal Force
Contact Wire
Maximum operating speed
Number of contact wires
3EGF011680
Section insualtor 3 kV with GRP plates
Plastic insulator
14 kg
15 kN
AC 80 - 120
100 km/h
1
PDF
Request
Material ID
Name
Nominal voltage
3EGF011680
Section insualtor 3 kV with GRP plates
3 kV
PDF
Request
