Section Insulators DC bis 1,5 kV

PDF

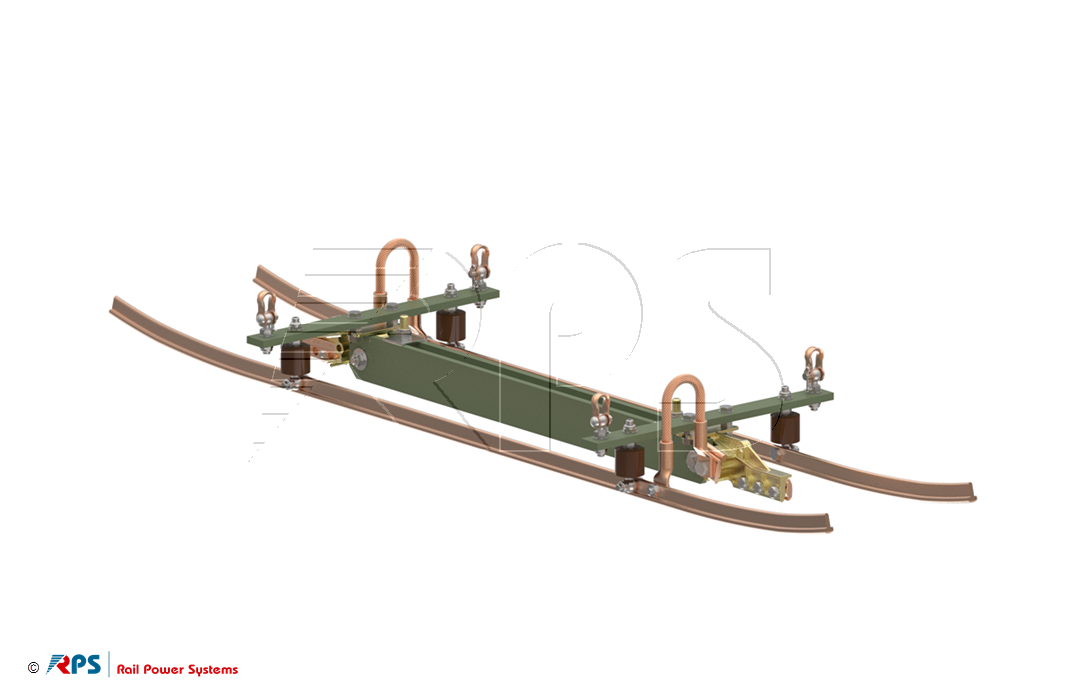

Section insualtor 1,5 kV with passable GRP plates with skids - bridging type
3EGF015682

  • Spark plugs: no
  • Number of pantograph cycles: 2 million
  • Breaking force: 45 kN



Request

Variants

Material ID Name Material Weight Nominal Force Length Contact Wire Number of contact wires Maximum operating speed
3EGF015682 Section insualtor 1,5 kV with passable GRP plates with skids - bridging type Plastic insulator 12,5 kg 15 kN 1500 mm AC 80 Cu bis AC 150 Cu 1 100 km/h PDF Request
Material ID Name Creepage Path Power-frequency withstand voltage, wet Nominal voltage Rated impulse voltage
3EGF015682 Section insualtor 1,5 kV with passable GRP plates with skids - bridging type 680 mm 25 kV 1,5 kV 85 kV PDF Request
