Section Insulators DC bis 1,5 kV

PDF

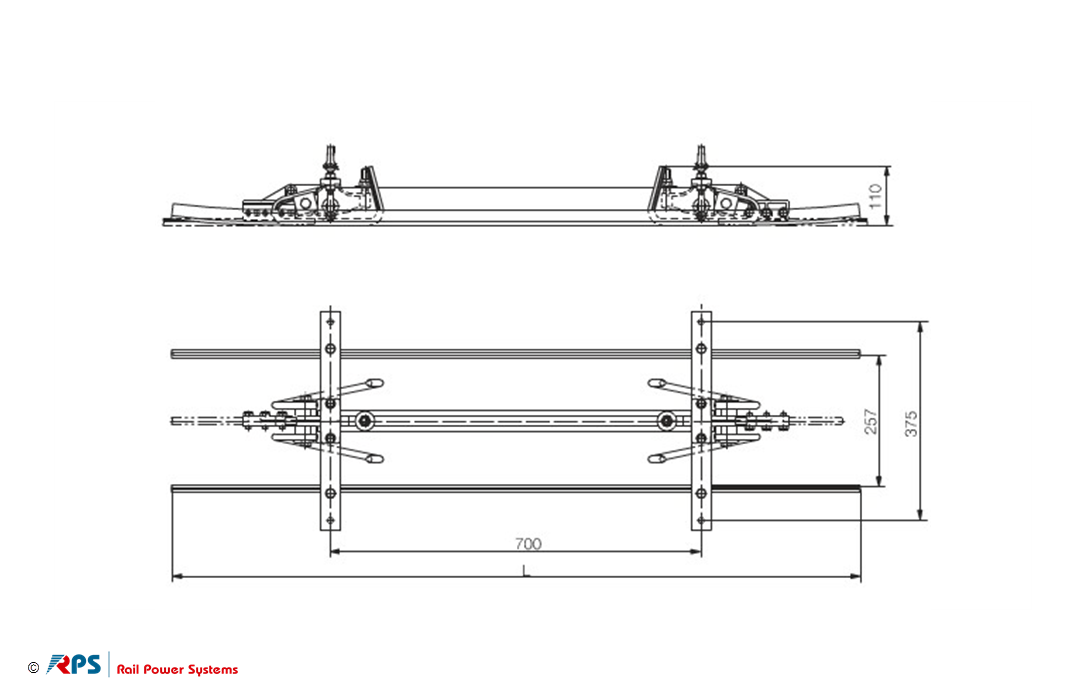

Section insualtor 1,5 kV with passable GRP plates with skids
3EGF010289

  • Spark plugs: no
  • Number of pantograph cycles: 2 million
  • Breaking force: 45 kN
Request

Variants

Material ID Name Material Weight Length Contact Wire Number of contact wires Maximum operating speed
3EGF010289 Section insualtor 1,5 kV with passable GRP plates with skids Plastic insulator 16,5 kg 1300 mm AC 80 -150 1 100 km/h PDF Request
Material ID Name Creepage Path Power-frequency withstand voltage, wet Nominal voltage Rated impulse voltage
3EGF010289 Section insualtor 1,5 kV with passable GRP plates with skids 500 mm 25 kV 1,5 kV 66 kV PDF Request
