Section Insulators DC bis 1,5 kV

PDF

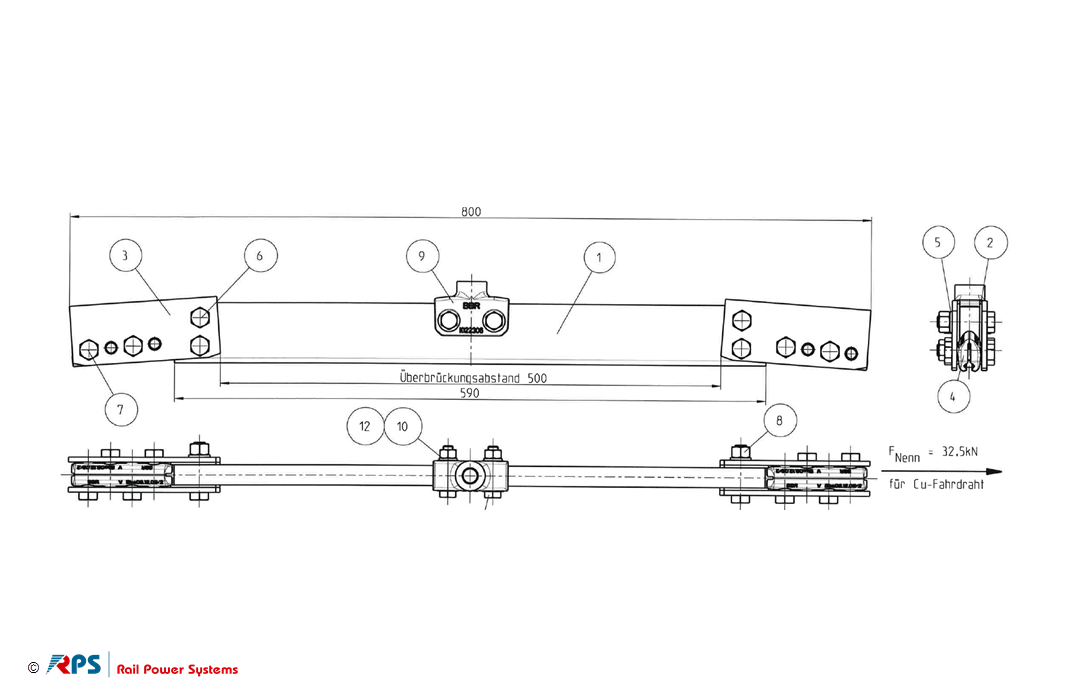

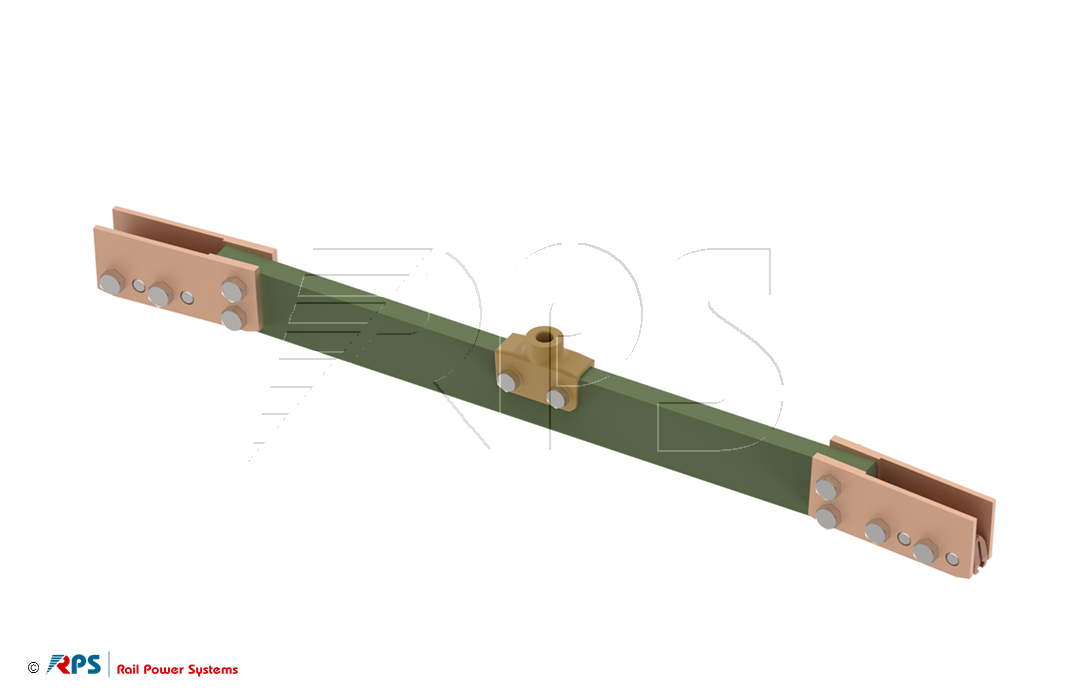

Section insualtor 1,5 kV with passable GRP plates without skids
3EGF005855

  • Spark plugs: no
  • Number of pantograph cycles: 2 million
  • Breaking force: 45 kN
Request

Variants

Material ID Name Material Weight Nominal Force Length Contact Wire Number of contact wires Maximum operating speed
3EGF005855 Section insualtor 1,5 kV with passable GRP plates without skids Plastic insulator 4,8 kg 15 kN 800 mm AC 80 -150 1 100 km/h PDF Request
Material ID Name Material Power-frequency withstand voltage, wet Nominal voltage Rated impulse voltage
3EGF005855 Section insualtor 1,5 kV with passable GRP plates without skids Plastic insulator 25 kV 1,5 kV 66 kV PDF Request
