Section insulators AC up to 25 kV

PDF

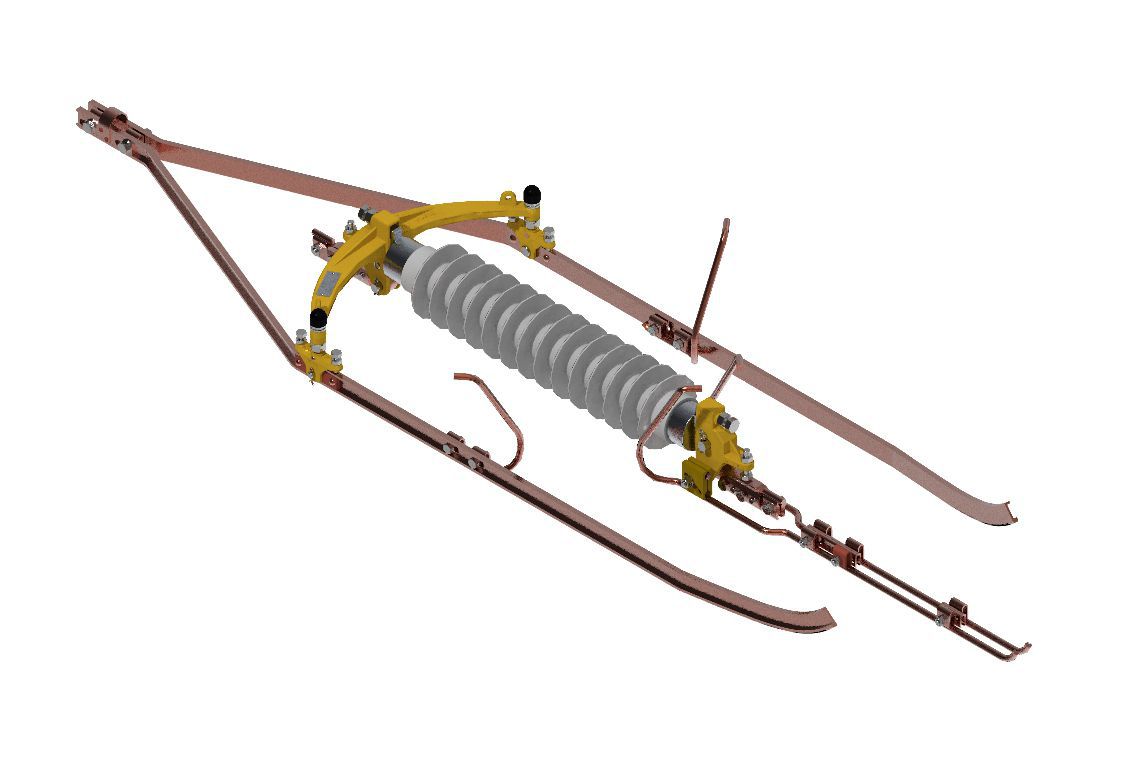

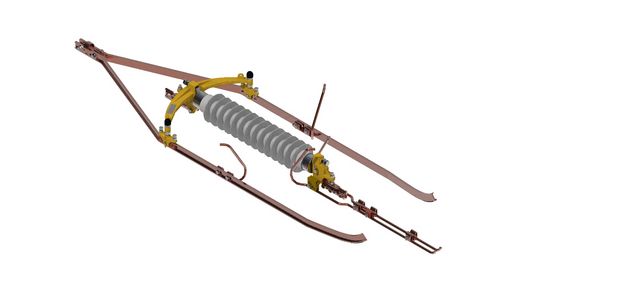

Section insulator 25 kV with composite insulator with arcing horns
3EGF021651

  • Arcing horns: yes
  • Number of pantograph cycles: 2 million
  • Breaking force: 88 kN
Request

Variants

Material ID Name Material Weight Nominal Force Contact Wire Number of contact wires Maximum operating speed
3EGF021651 Section insulator 25 kV with composite insulator with arcing horns Composite insulator 31,6 kg 30 kN AC 80 -150 1 160 km/h PDF Request
Material ID Name Nominal voltage Creepage Path Power-frequency withstand voltage, wet Rated impulse voltage
3EGF021651 Section insulator 25 kV with composite insulator with arcing horns 25 kV 1450 mm 80 kV 150 kV PDF Request
