Section insualtor 25 kV with ceramic insulators - Section insulators AC upt to 25 kV

Section insulator
3EGF008038

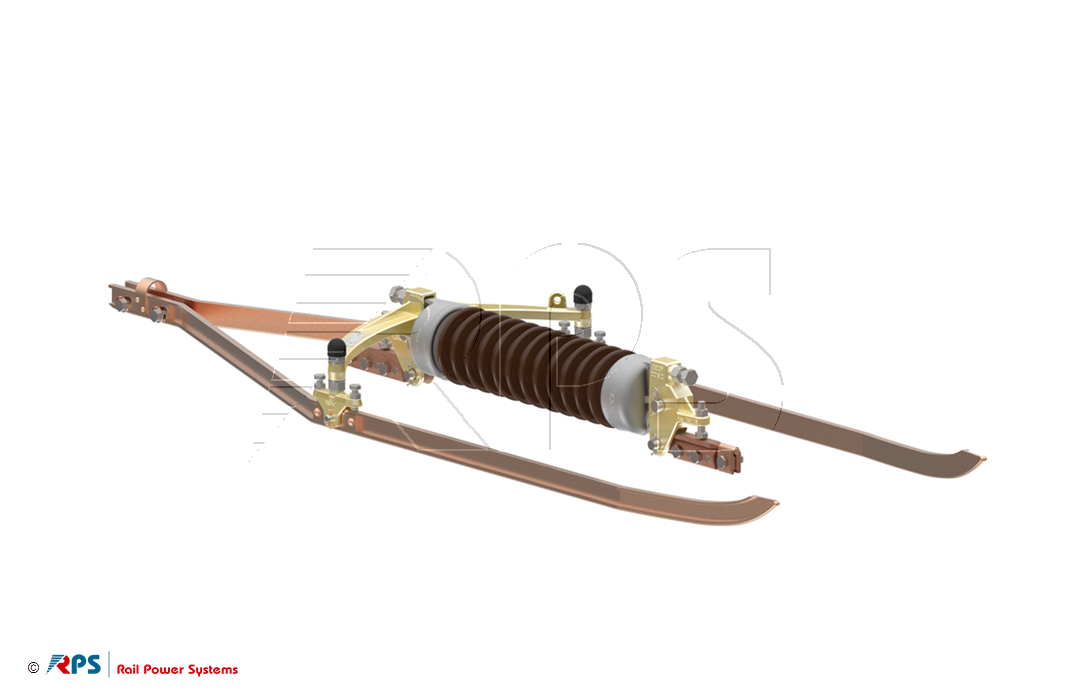

For grooved contact wires type AC-100 and AC-120.

With porcelain insulator.

Max. speed 160 km/h.

Material ID	Name	Material	Weight	Nominal Force	Contact Wire	Number of contact wires	Maximum operating speed
3EGF007542	Section insualtor 25 kV with ceramic insulators	Ceramic insulator	38,5 kg	30 kN	AC 80 -150	1	160 km/h	PDF	Request
3EGF008038	Section insulator	Ceramic insulator	30,6 kg	90 kN	AC 80-150	1	160 km/h	PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Power-frequency withstand voltage, wet	Rated impulse voltage
3EGF007542	Section insualtor 25 kV with ceramic insulators	25 kV	725 mm	130 kV	260 kV	PDF	Request
3EGF008038	Section insulator		725 mm			PDF	Request
