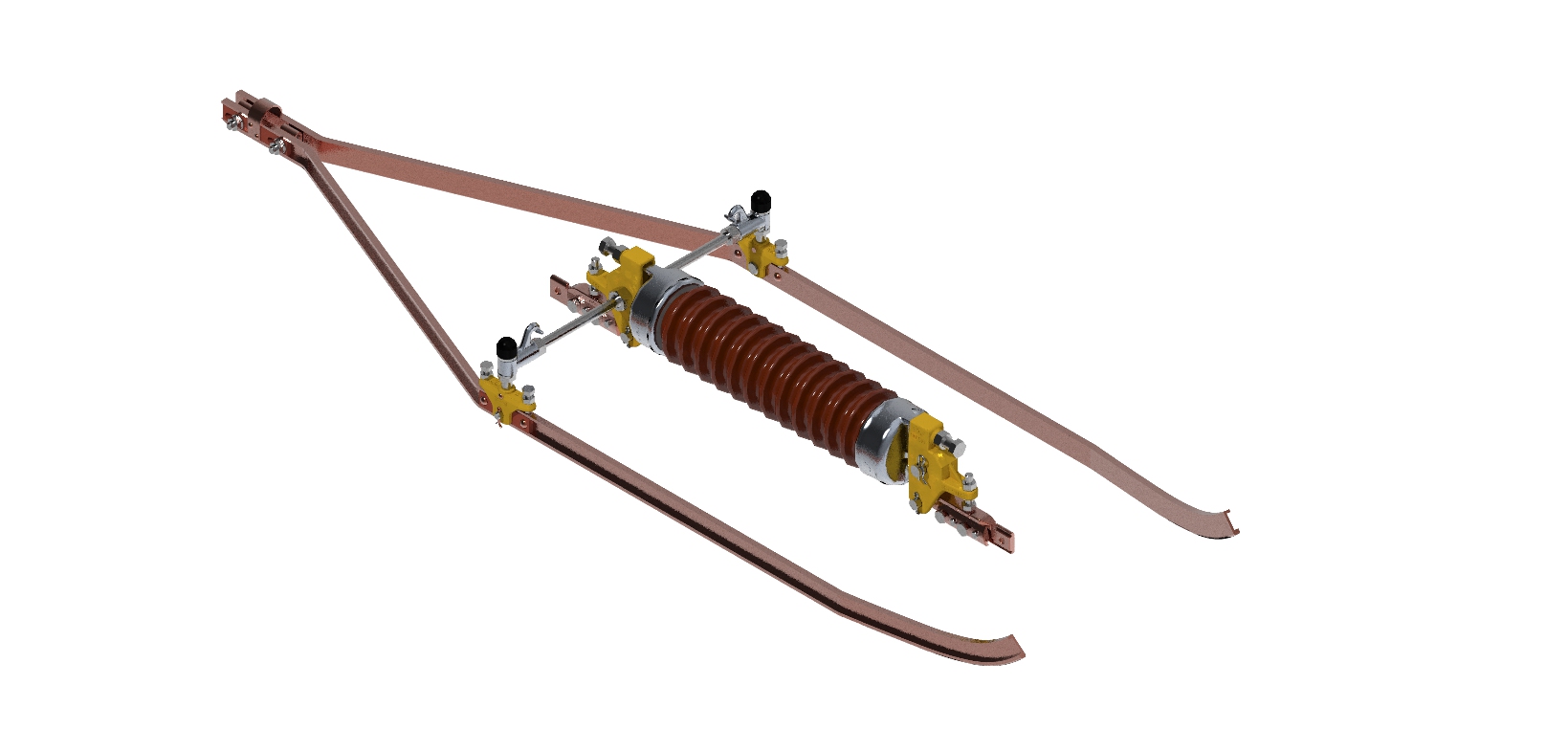

Section insualtor 25 kV with ceramic insulators with suspension
3EGF007541
Spark plugs: nein
Number of pantograph cycles: 2 million
Breaking force: 88 kN
Variants
Request
Variants
Mechanical values
Electrical values
Material ID
Name
Material
Weight
Nominal Force
Contact Wire
Number of contact wires
Maximum operating speed
3EGF007541
Section insualtor 25 kV with ceramic insulators with suspension
Ceramic insulator
32 kg
30 kN
AC 80 -150
1
160 km/h
PDF
Request
Material ID
Name
Nominal voltage
Creepage Path
Power-frequency withstand voltage, wet
Rated impulse voltage
3EGF007541
Section insualtor 25 kV with ceramic insulators with suspension
25 kV
725 mm
130 kV
160 kV
