Material ID | Name | Material | Weight | Nominal Force | Contact Wire | Maximum operating speed | Length | Number of contact wires | ||
---|---|---|---|---|---|---|---|---|---|---|

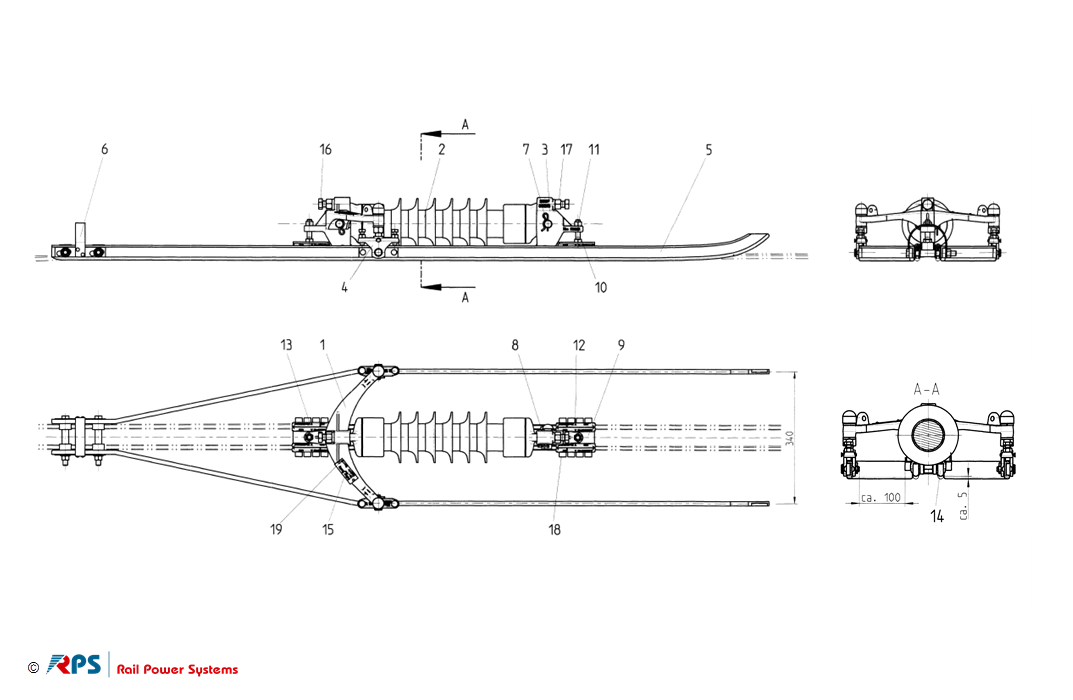

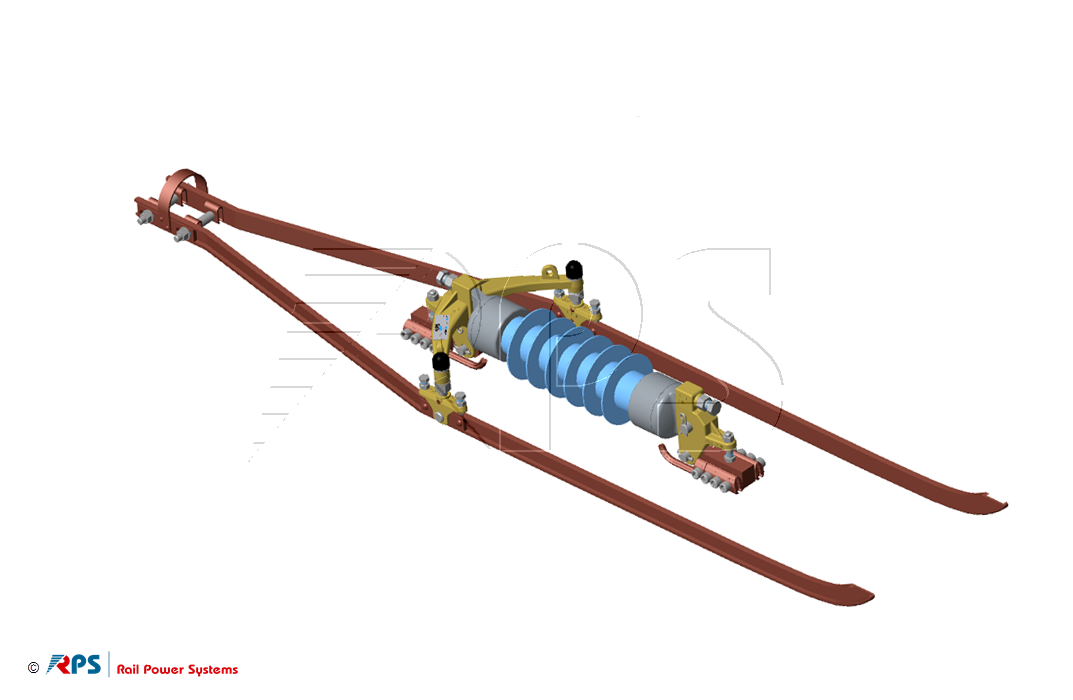

3EGF010628 | Section insulator 15 kV with composite insualtors for 2 contact wires | Plastic insulator | 29,1 kg | 30 kN | AC 80 -150 | 160 km/h | 1600 mm | 2 | Request |
Material ID | Name | Nominal voltage | Rated impulse voltage | Power-frequency withstand voltage, wet | Creepage Path | ||
---|---|---|---|---|---|---|---|
3EGF010628 | Section insulator 15 kV with composite insualtors for 2 contact wires | 15 kV | 93 kV | 47 kV | 555 mm | Request |
