Section insualtor AC up to 15 kV

PDF

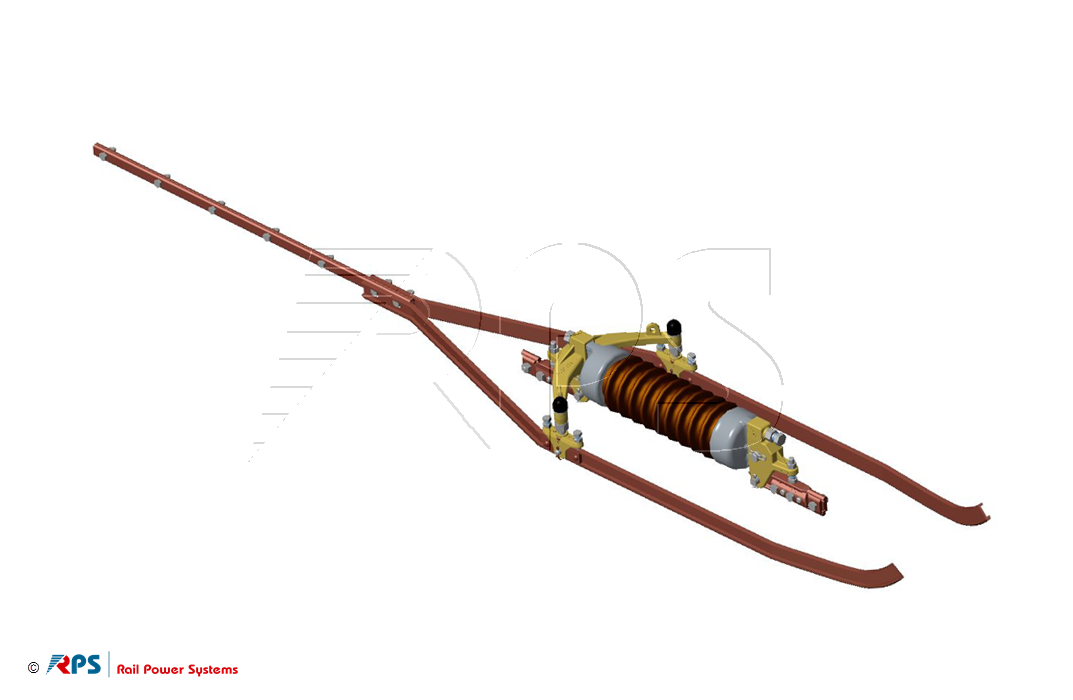

Section insualtor 15 kV with ceramic insulators
3EGF007890

  • Spark plugs: no
  • Number of pantograph cycles: 2 million
  • Breaking force: 88 kN
Request

Variants

Material ID Name Material Weight Nominal Force Contact Wire Maximum operating speed Length Number of contact wires
3EGF007890 Section insualtor 15 kV with ceramic insulators Ceramic insulator 28,5 kg 30 kN AC 80 -150 120 km/h 1600 mm 1 PDF Request
Material ID Name Nominal voltage Rated impulse voltage Power-frequency withstand voltage, wet Creepage Path
3EGF007890 Section insualtor 15 kV with ceramic insulators 15 kV 93 kV 47 kV 555 mm PDF Request
