DC up to 3 kV

PDF

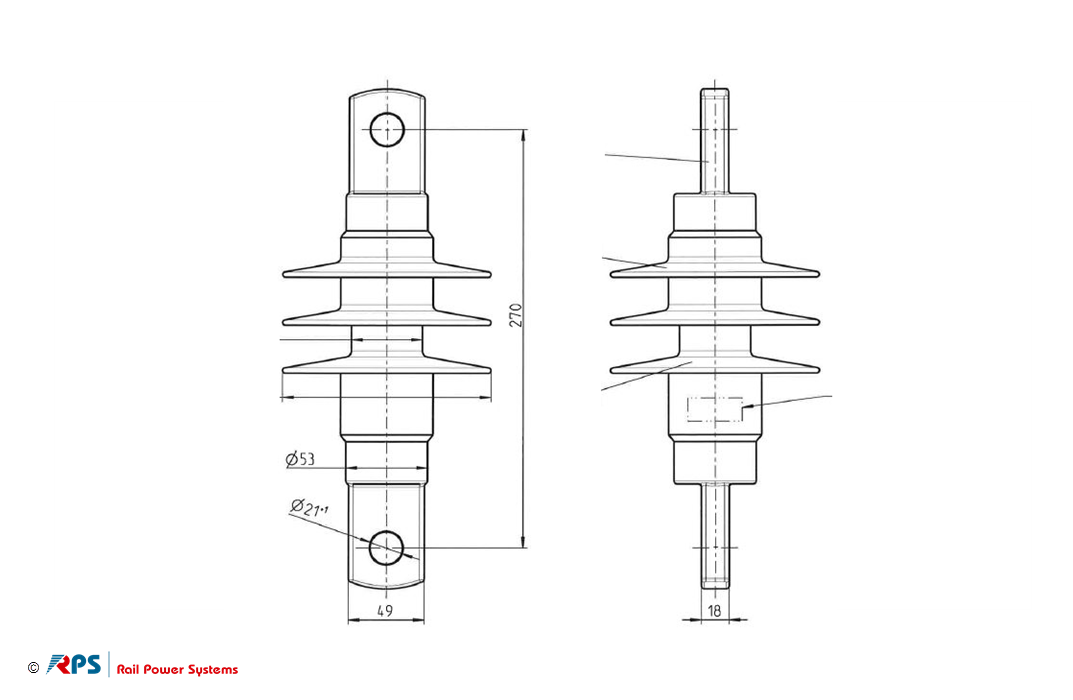

Insulator 3 kV Tongue/Tongue 3 sheds
3EGF018723

Request

Variants

Material ID Name Material Weight Specified cantilever load (SCL) Maximum design cantilever load (MDCL) Specified tensile load (STL) Specified mechanical load (SML) Maximum design tensile load (MDTL)
3EGF019711 Insulator 3 kV Tongue/Tubecap D42-70 3 sheds Composite 4,92 kg 8 kN 4 kN 50 kN PDF Request
3EGF018723 Insulator 3 kV Tongue/Tongue 3 sheds Composite 2,72 kg 140 kN 56 kN PDF Request
3EGF021023 Insulator 3kV M16 / 2sheds KW240 plastic OCR Composite 0,99 kg 6 kN 2,4 kN 10 kN PDF Request
Material ID Name Nominal voltage Creepage Path Rated impulse withstand voltage Power-frequency withstand voltage, wet Arcing distance
3EGF019711 Insulator 3 kV Tongue/Tubecap D42-70 3 sheds 3 kV 345 mm 95 kV 40 kV 170 mm PDF Request
3EGF018723 Insulator 3 kV Tongue/Tongue 3 sheds 3 kV 360 mm 120 kV 45 kV 173 mm PDF Request
3EGF021023 Insulator 3kV M16 / 2sheds KW240 plastic OCR 3 kV 240 mm 60 kV 20 kV 178 mm PDF Request
