DC 3kV - DC up to 3 kV

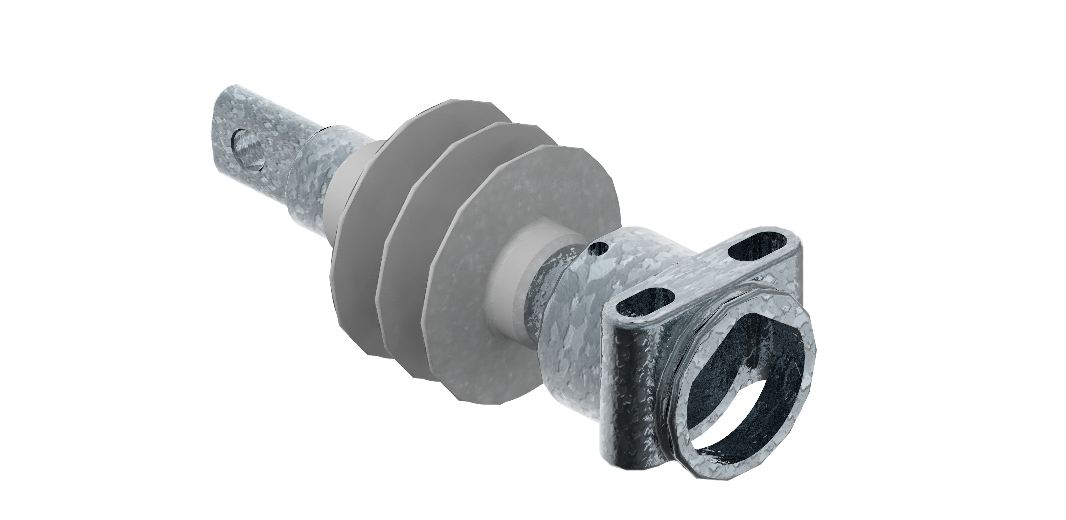

Insulator 3 kV Tongue/Tubecap D42-70 3 sheds
3EGF019711

Suitable U-bolts:
- D42: 3EGF008725
- D55: 3EGF001152
- D70: 3EGF008520

Material ID	Name	Material	Weight	Specified cantilever load (SCL)	Maximum design cantilever load (MDCL)	Specified tensile load (STL)	Specified mechanical load (SML)	Maximum design tensile load (MDTL)
3EGF019711	Insulator 3 kV Tongue/Tubecap D42-70 3 sheds	Composite	4,92 kg	8 kN	4 kN	50 kN			PDF	Request
3EGF018723	Insulator 3 kV Tongue/Tongue 3 sheds	Composite	2,72 kg				140 kN	56 kN	PDF	Request
3EGF021023	Insulator 3kV M16 / 2sheds KW240 plastic OCR	Composite	0,99 kg	6 kN	2,4 kN	10 kN			PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
3EGF019711	Insulator 3 kV Tongue/Tubecap D42-70 3 sheds	3 kV	345 mm	95 kV	40 kV	170 mm	PDF	Request
3EGF018723	Insulator 3 kV Tongue/Tongue 3 sheds	3 kV	360 mm	120 kV	45 kV	173 mm	PDF	Request
3EGF021023	Insulator 3kV M16 / 2sheds KW240 plastic OCR	3 kV	240 mm	60 kV	20 kV	178 mm	PDF	Request
