DC up to 3 kV

PDF

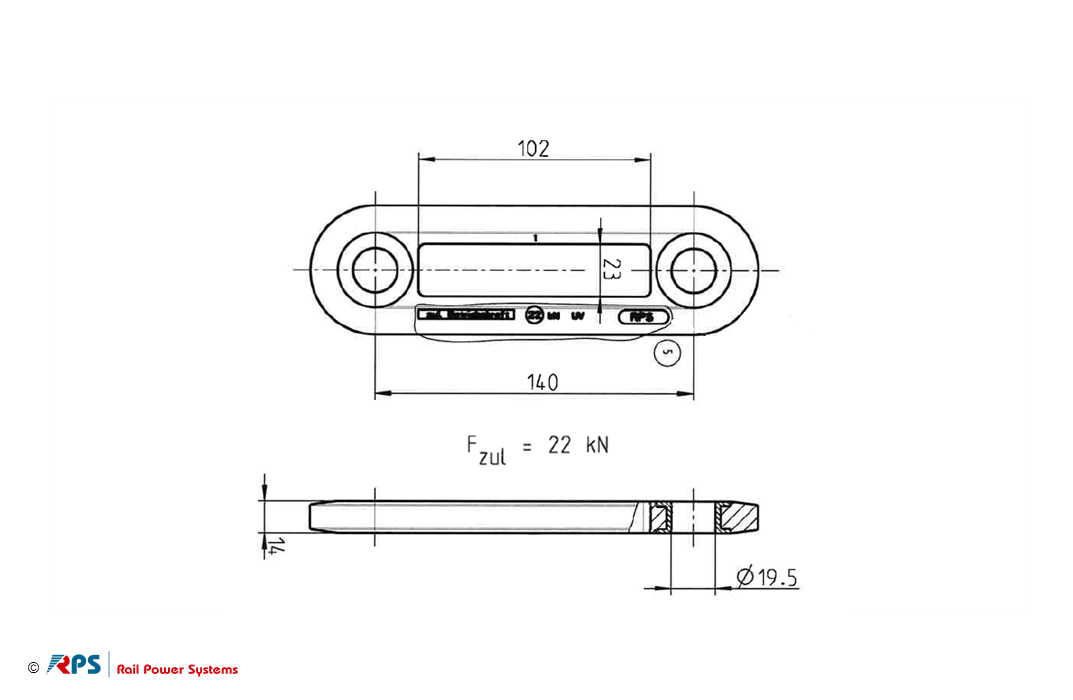

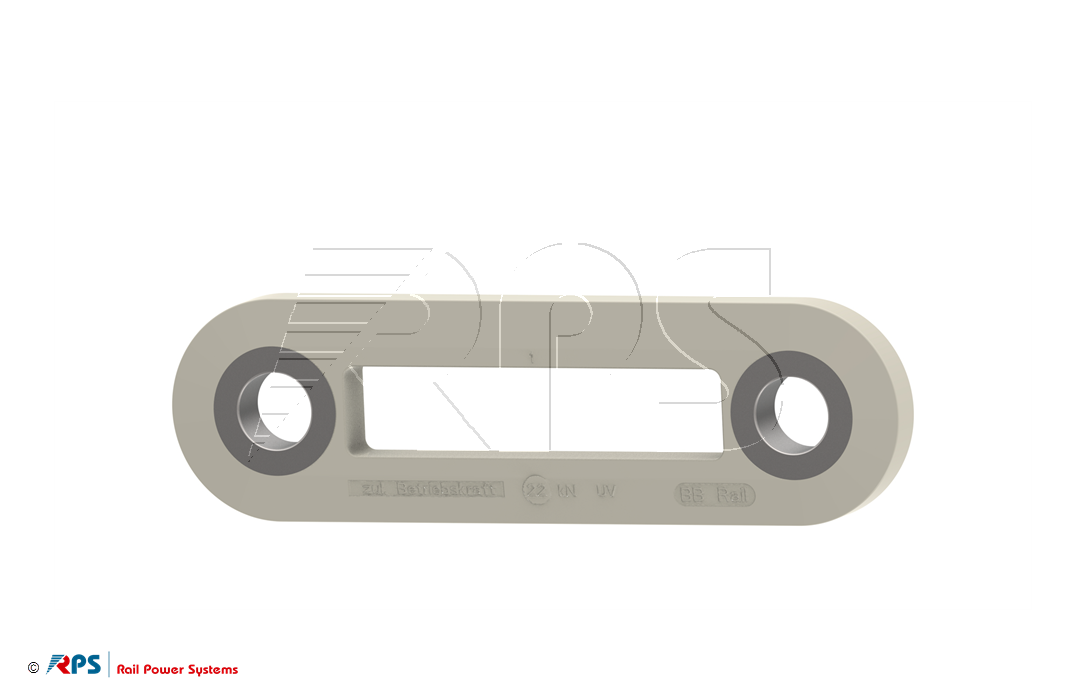

Loop Insulator 1.5 kV
3EGF005784

Request

Variants

Material ID Name Weight Material Specified cantilever load (SCL) Specified mechanical load (SML) Maximum design tensile load (MDTL) Specified tensile load (STL)
3EGF009183 Insulator 1.5 kV Thread M20/3xM10 1,4 kg Epoxy resin 16,6 kN PDF Request
3EGF005784 Loop Insulator 1.5 kV 0,22 kg Epoxy resin 71 kN 22 kN PDF Request
3EGF004290 Insulator 0.75 kV Thread M16 0,28 kg Epoxy resin 18 kN 5,6 kN PDF Request
Material ID Name Nominal voltage Creepage Path Rated impulse withstand voltage Power-frequency withstand voltage, wet Arcing distance
3EGF009183 Insulator 1.5 kV Thread M20/3xM10 1,5 kV 144 mm 15 kV 6 kV 70 mm PDF Request
3EGF005784 Loop Insulator 1.5 kV 1,5 kV 102 mm 80 kV 11,5 kV 102 mm PDF Request
3EGF004290 Insulator 0.75 kV Thread M16 0,75 kV 85 mm 16 kV 60 mm PDF Request
