Composite insulators

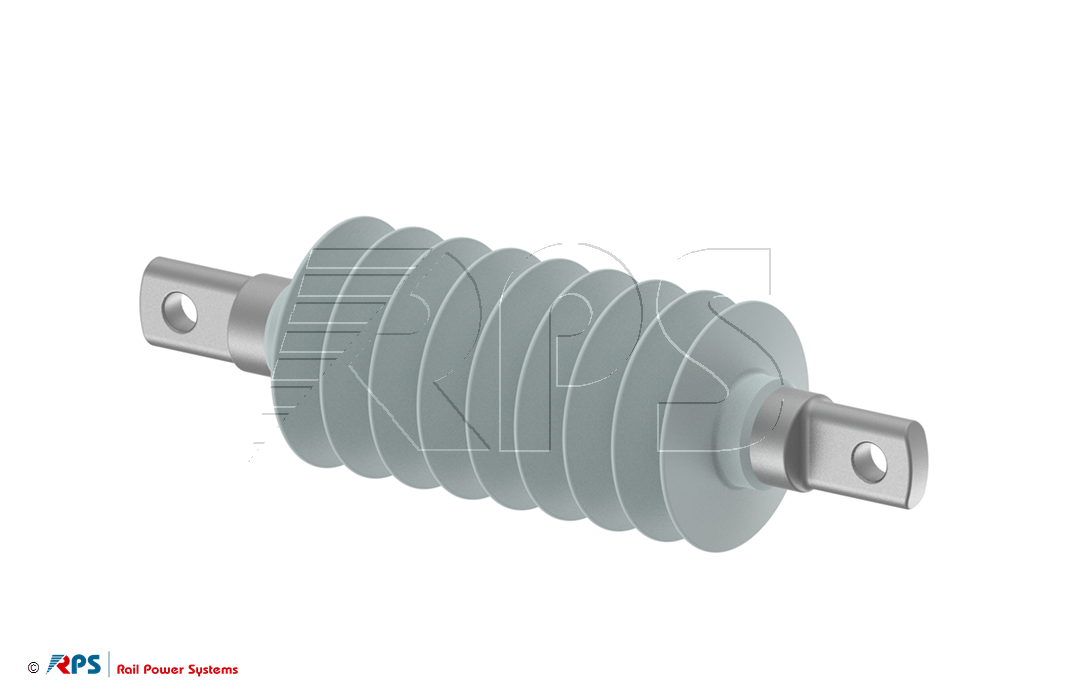

Insulator 15 kV Tongue/Tongue 7 sheds
3EGF018877

Pos.	Material ID	Name	Material	Weight	Specified cantilever load (SCL)	Maximum design cantilever load (MDCL)	Specified mechanical load (SML)
0	3EGF018716	Insulator 15 kV Tongue/Tubecap D42-70 10 sheds	Composite	5,9 kg	8 kN	4 kN		PDF	Request
1	3EGF018877	Insulator 15 kV Tongue/Tongue 7 sheds	Composite	3,4 kg	8 kN	4 kN	140 kN	PDF	Request
2	3EGF018715	Insulator 15 kV Tubecaps D42-70 7 sheds	Composite	7,9 kg	8 kN	4 kN		PDF	Request
3	3EGF020452	Insulator 15 kV STR-caps 8 sheds	Composite	7 kg	15 kN	6 kN	100 kN	PDF	Request
4	3EGF019386	Insulator 15 kV Thread M16 6 sheds	Composite	2,5 kg	6 kN	2,4 kN	25 kN	PDF	Request

Pos.	Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
0	3EGF018716	Insulator 15 kV Tongue/Tubecap D42-70 10 sheds	15 kV	1205 mm	250 kV	90 kV	410 mm	PDF	Request
1	3EGF018877	Insulator 15 kV Tongue/Tongue 7 sheds	15 kV	860 mm	200 kV	80 kV	320 mm	PDF	Request
2	3EGF018715	Insulator 15 kV Tubecaps D42-70 7 sheds	15 kV	860 mm	190 kV	90 kV	320 mm	PDF	Request
3	3EGF020452	Insulator 15 kV STR-caps 8 sheds	15 kV	842 mm	200 kV	90 kV	395 mm	PDF	Request
4	3EGF019386	Insulator 15 kV Thread M16 6 sheds	15 kV	720 mm	170 kV	70 kV	285 mm	PDF	Request
