Mast bracket high speed - Mast brackets

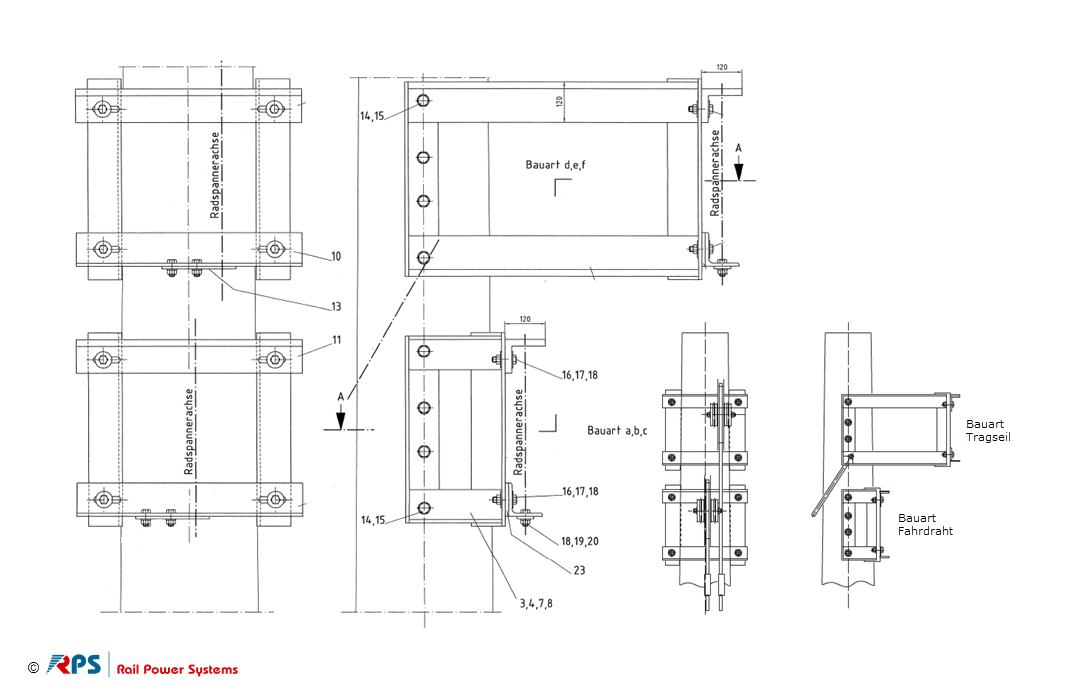

Fastening bracket
3EGF001711

For two tension wheels one in front of another at concrete mast.

FD = Fahrdraht (contact wire);

TS = Tragseil (catenary messenger)

Material ID	Name	Ebs	Build Type	Material	Weight	Mast Diameter	Nominal Force	Drawing Number
3EGF001711	Fastening bracket	Ebs 08.09.47 A	series FD	A2-70	3 kg	300 - 460 mm	60 kN	08.09.47 a	PDF	Request
3EGF001714	Fastening bracket	Ebs 08.09.47 D	serial TS	A2-70	3 kg	300 - 460 mm	60 kN	08.09.47 d	PDF	Request
