Mast brackets
PDF

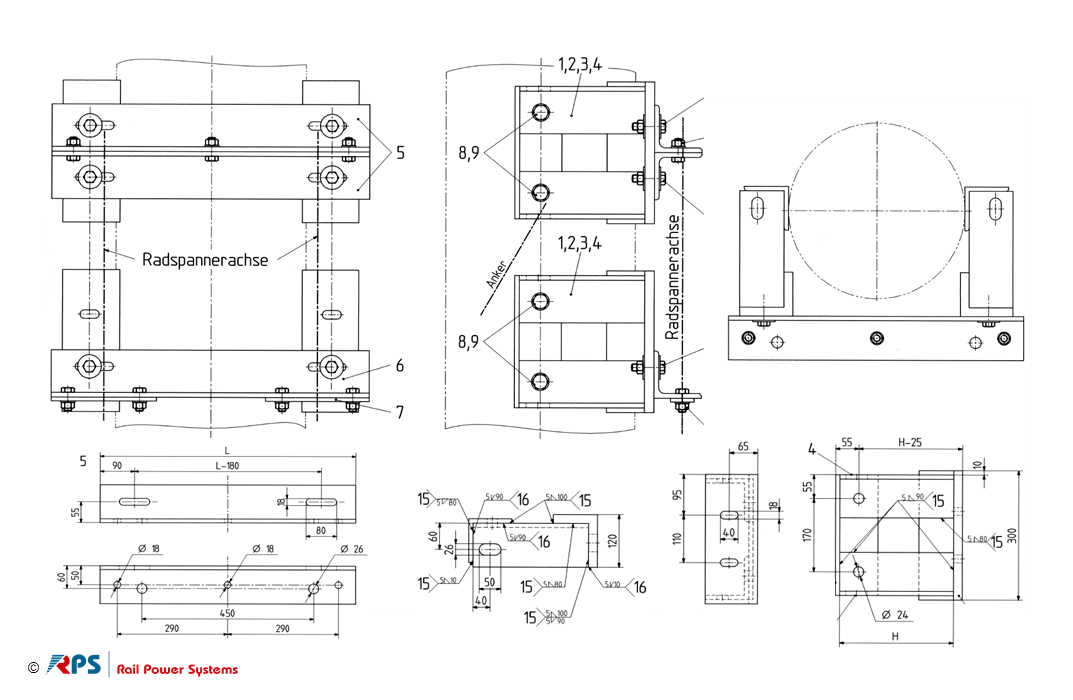

Fastening bracket
3EGF001703
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Build Type
Material
Weight
Mast Diameter
Nominal Force
Drawing Number
3EGF001703
Fastening bracket
Ebs 08.09.46 A
parallel
A2-70
3 kg
300 - 460 mm
60 kN
08.09.46 a
PDF
Request
3EGF001704
Fastening bracket
Ebs 08.09.46 B
parallel
A2-70
3 kg
440 - 560 mm
60 kN
08.09.46 b
PDF
Request
3EGF001706
Fastening bracket
Ebs 08.09.46 C
parallel
A2-70
3 kg
540 - 660 mm
60 kN
08.09.46 c
PDF
Request
