PDF

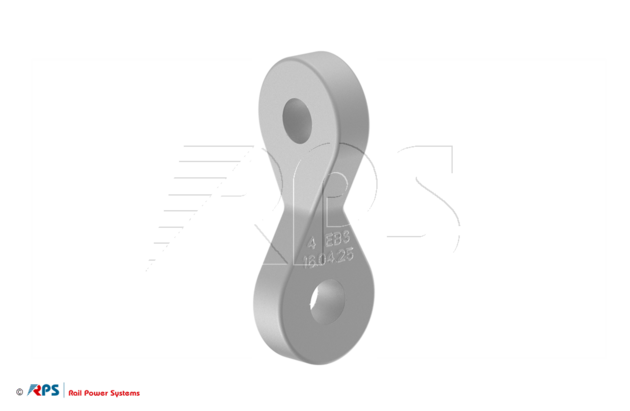

Eye-eye connector
3EGF002658
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight
Nominal Force

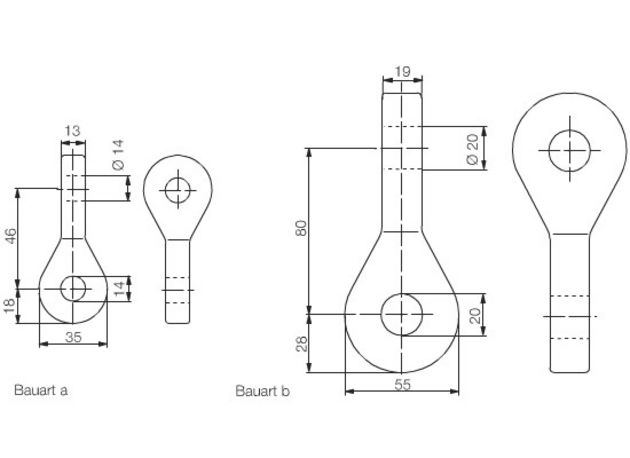

Drawing Number
3EGF002658
Eye-eye connector
Ebs 16.04.25
G-Al
0,230 kg
80 kN
Ebs 16.04.25 Ausführung b
PDF
Request
3EGF005712
Eye-eye connector for bolt 19
St-tzn
0,800 kg
90 kN
GVT4501101 Ausführung b
PDF
Request
