Wire Guiding Clamp - Terminal clamp

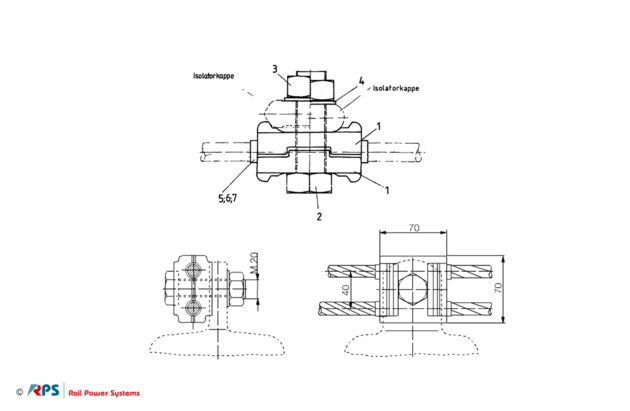

Wire Guiding Clamp wire 95/259
3EGF002222

for wires & cables at post insulator and contact wire

Material ID	Name	Ebs	Material	Weight	Rope Q	Contact Wire
3EGF002222	Wire Guiding Clamp wire 95/259	Ebs 10.21.15 B	CC761S-GS	1,135 kg	95 mm²		PDF	Request
3EGF008286	Wire Guiding Clamp wire 120/19	Ebs 10.21.15 C	Cu-Al10Fe, CC761S-GS	1,26 kg	120 mm²		PDF	Request
3EGF008287	Wire Guiding Clamp wire 95/19	Ebs 10.21.15 D	CC761S-GS		95 mm²	AC100	PDF	Request
3EGF006868	Earth Wire Connection Clamp wire 95f/95			0,668 kg	95 mm²		PDF	Request
3EGF006874	Earth Wire Connection Clamp wire 50f/95			0,426 kg	50 / 95 mm²		PDF	Request
