Suspension clamps for wires 243 and 184

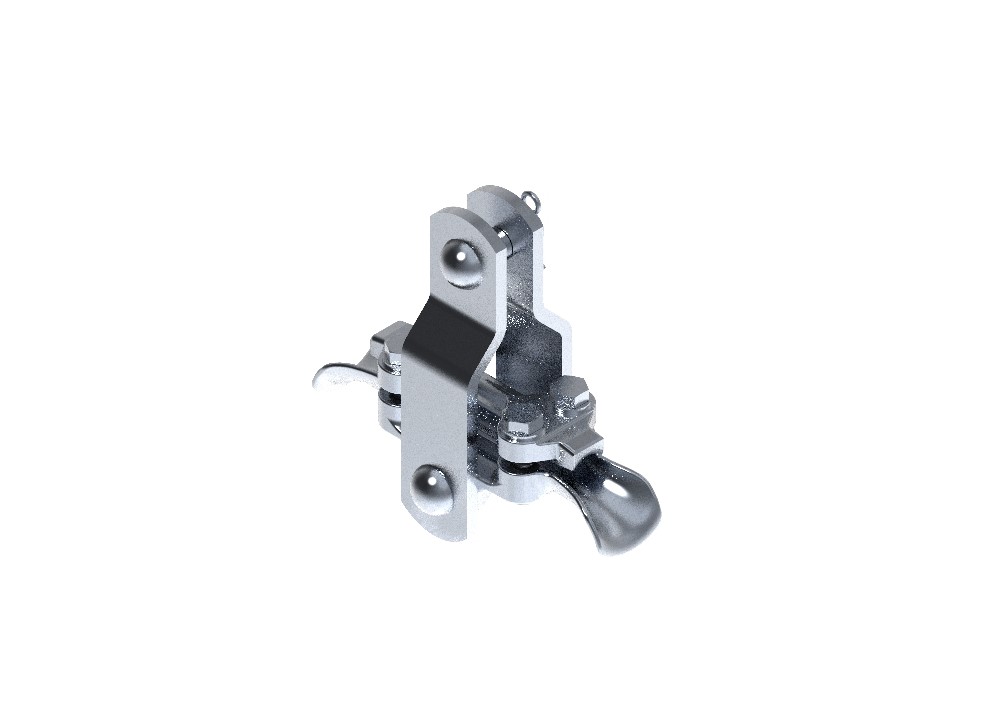

Suspension clamp wire 243/184 steel link plate
3EGF009658

for wires 243-AL1 and 184

Material ID	Name	Ebs	Material	Weight	Build Type	Rope Q	Rope Diameter
3EGF009658	Suspension clamp wire 243/184 steel link plate	Ebs 16.03.04-3 A	AW 6082 T6	1,435 kg	Link plate: S355J2	184 / 243 mm²	19 - 24,5 mm	PDF	Request
3EGF002641	Suspension clamp wire 243/184 aluminium link plate	Ebs 16.03.04-3 C	AW 6082 T6	0,8 kg	Link plate: AW 6082 T6	184 / 243 mm²	19 - 24,5 mm	PDF	Request
3EGF009660	Suspension clamp wire 243/184	Ebs 16.03.04-3 C1	AW 6082 T6			184 / 243 mm²	19 - 24,5 mm	PDF	Request
