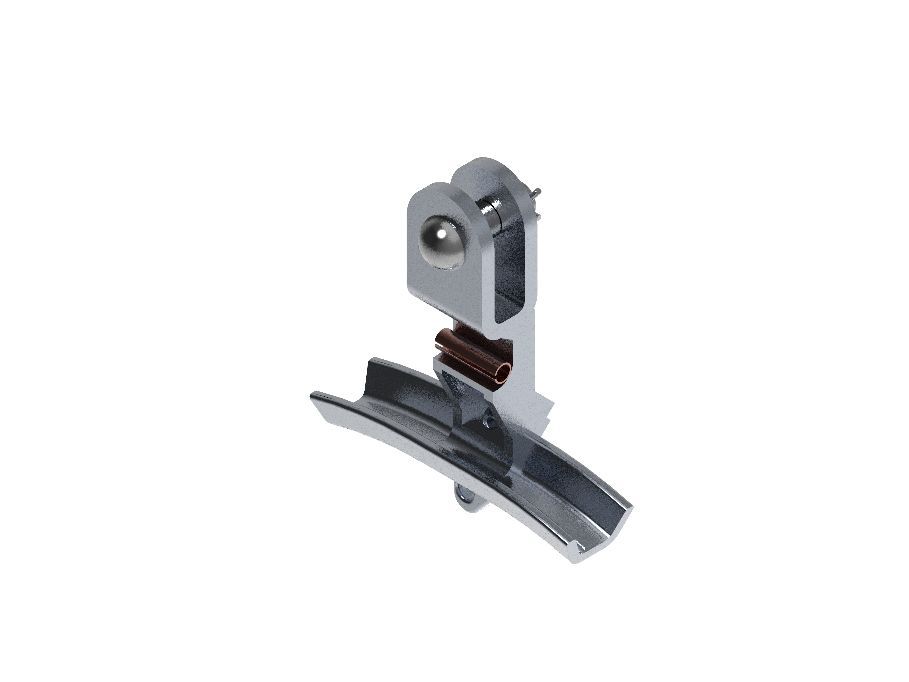

Suspension clamp wire 95/19
3EGF010258
for wires acc. DIN 48201
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight
Rope Q
3EGF010257
Suspension clamp wire 50/7
Ebs 06.93.19 A
GJMW 400-5
1,76 kg
50 mm²
PDF
Request
3EGF010258
Suspension clamp wire 95/19
Ebs 06.93.19 B
GJMW 400-5
1,768 kg
95 mm²
PDF
Request
3EGF010259
Suspension clamp wire 150/37
Ebs 06.93.19 C
GJMW 400-5
150 mm²
PDF
Request
