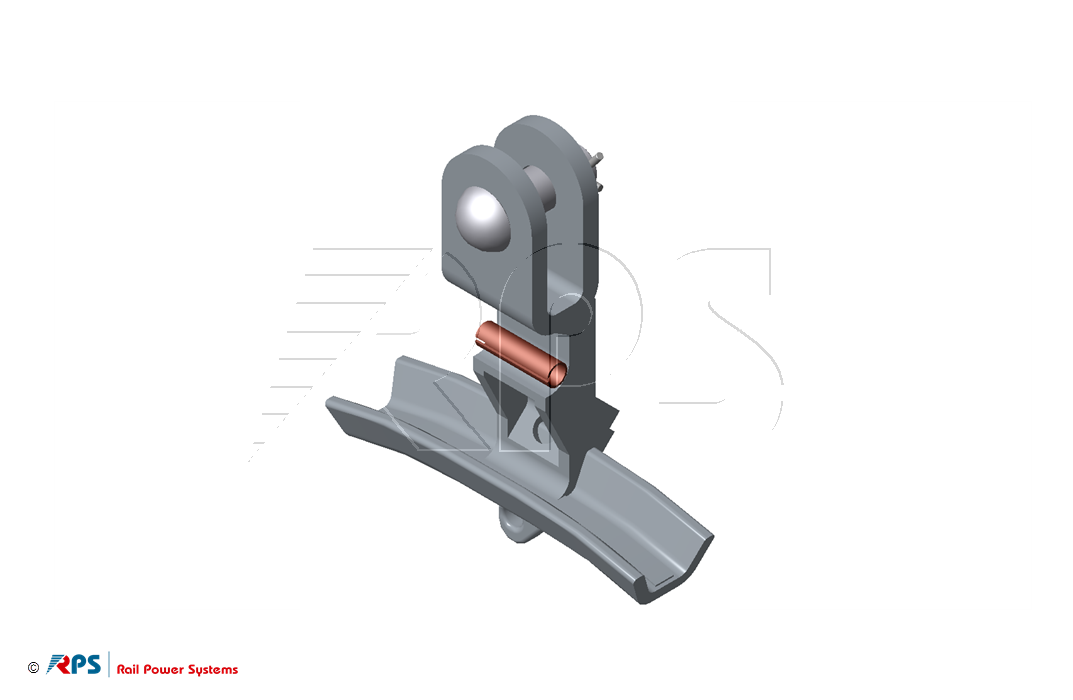

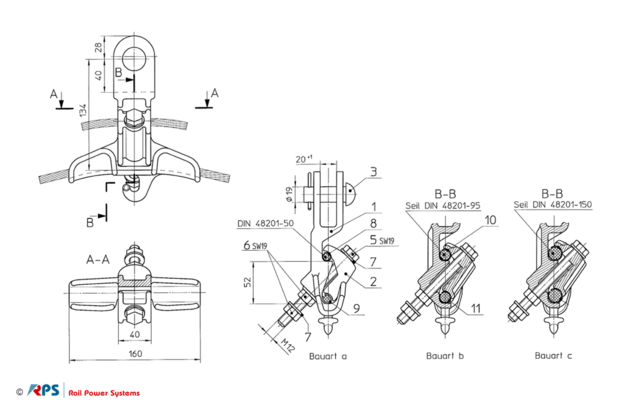

Suspension clamp for 2 wires with protection sleeves

Suspension clamp wire 50/7
3EGF010257

for wires acc. DIN 48201

Material ID	Name	Ebs	Material	Weight	Rope Q
3EGF010257	Suspension clamp wire 50/7	Ebs 06.93.19 A	GJMW 400-5	1,76 kg	50 mm²	PDF	Request
3EGF010258	Suspension clamp wire 95/19	Ebs 06.93.19 B	GJMW 400-5	1,768 kg	95 mm²	PDF	Request
3EGF010259	Suspension clamp wire 150/37	Ebs 06.93.19 C	GJMW 400-5		150 mm²	PDF	Request
