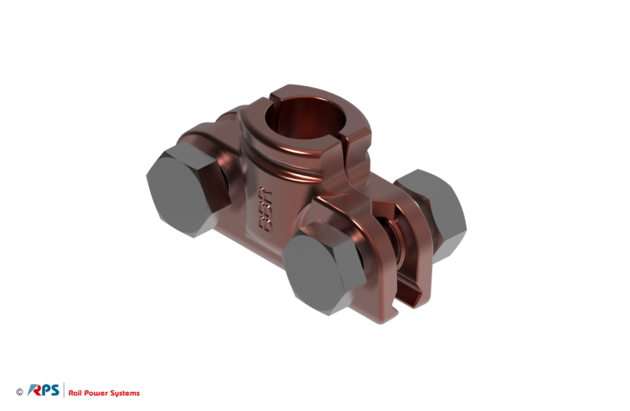

Contact Wire Clamp for pivot pin

Contact wire clamp
3EGF006072

For contact wires acc. EN 50149

Material ID	Name	Build Type	Material	Weight	Contact Wire	Nominal Force
3EGF006072	Contact wire clamp	without split pin	CW111C	0,29 kg	AC80-150	7,5 kN	PDF	Request
3EGF006073	Contact wire clamp	with split pin	CW111C	0,30 kg	AC80-150	7,5 kN	PDF	Request
3EGF006074	Contact wire clamp	with split pin	CW607N	0,29 kg	AC80-150	7,5 kN	PDF	Request
3EGF013199	Contact Wire Clamp	with split pin	CW111C	0,25 kg	BC80-150	9 kN	PDF	Request
