Slotted Bolt Clamp - Catenary wire dropper clamp

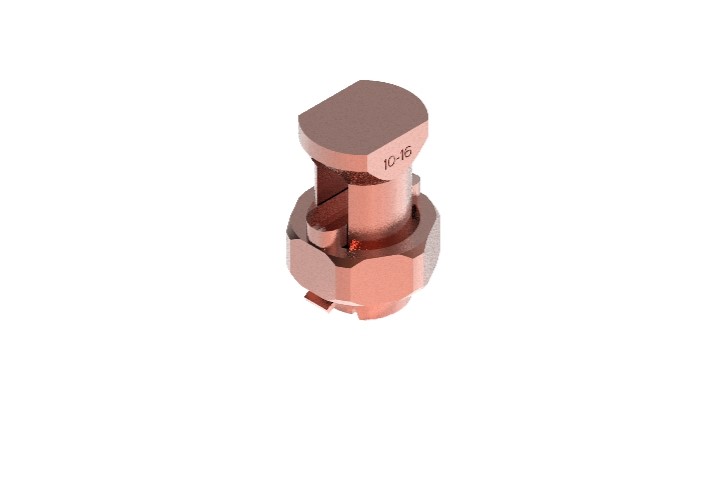

Slotted Bolt Clamp 10-16mm²
3EGF014521

Material ID	Name	Material	Rope Q	Length	Weight
3EGF014521	Slotted Bolt Clamp 10-16mm²	CW008A	10 - 16 mm²	31 mm	0,029 kg	PDF	Request
3EGF014522	Slotted Bolt Clamp 16-25mm²	CW008A	16 - 25 mm²	38 mm		PDF	Request
3EGF014524	Slotted Bolt Clamp 25-50mm²	CW008A	25 - 50 mm²	45 mm		PDF	Request
