Cross span eye clamps - Transverse structures

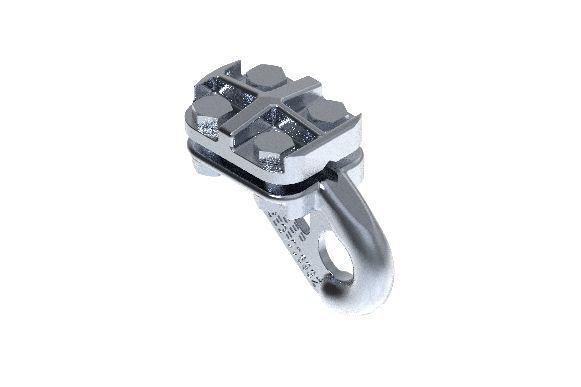

Cross span eye clamp wire D6-8
3EGF006934

For steady arms at cross spans and pull-offs.

Material ID	Name	Ebs	Material	Weight	Rope Q	Rope Diameter
3EGF001565	Cross span eye clamp wire 50/70	Ebs 06.93.08-1 A	JM1030	1,15 kg	50 / 70 mm²	12 mm	PDF	Request
3EGF001568	Cross span eye clamp wire 95	Ebs 06.93.08-1 B	JM1030	1,33 kg	95 mm²	12 mm	PDF	Request
3EGF006934	Cross span eye clamp wire D6-8		AC-42100	0,43 kg		8 mm	PDF	Request
