Contact wire steady arm
PDF

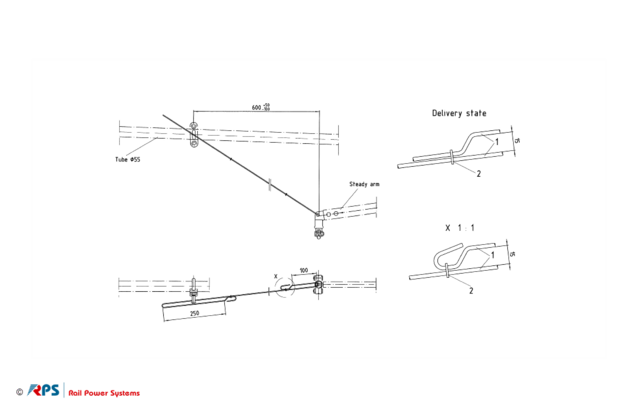

Wind stay L 700/1040 mm
3EGF001458
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight
3EGF001457
Wind stay L 700/1040 mm
Ebs 05.98.25 A
X5CrNi18-10
0,06 kg
PDF
Request
3EGF001458
Wind stay L 700/1040 mm
Ebs 05.98.25 B
X5CrNi18-10
0,08 kg
PDF
Request
3EGF010078
Wind stay L 700/1040 mm
Ebs 05.98.25 B
X5CrNi18-10
0,07 kg
PDF
Request
