Reducing fitting
PDF

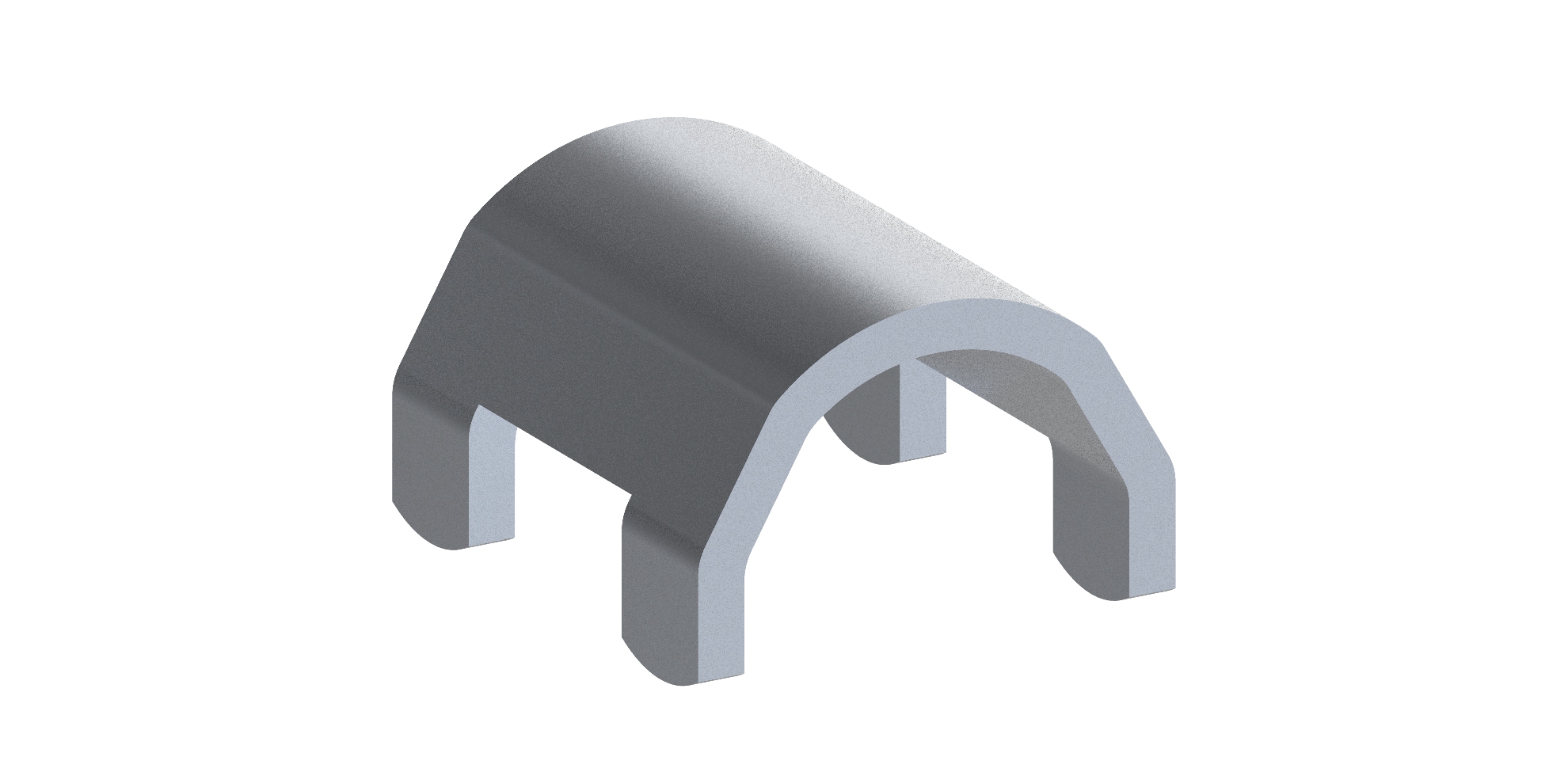

Reducing insert 70/55
3EGF001438
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight
Diameter
3EGF001334
Reducing fitting 70/55
Ebs 05.96.02
AC-42100
1,56 kg
70/55 mm
PDF
Request
3EGF001336
Reducing fitting 80/70
Ebs 05.96.04
AC-42100
1,89 kg
80/70 mm
PDF
Request
3EGF001438
Reducing insert 70/55
Ebs 05.98.08
AW 6082
70/55 mm
PDF
Request
