Hinge joint
PDF

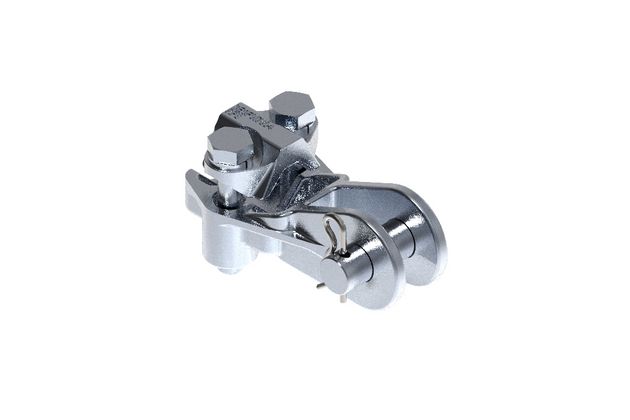

Clevis end fitting D26
3EGF017628
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Build Type
Weight
Material
Diameter
3EGF017628
Clevis end fitting D26
Ebs 05.96.75-2
with clamping cap
0,48 kg
AC-42100
26 mm
PDF
Request
3EGF017632
Clevis end fitting D42
Ebs 05.96.76-2
with clamping cap
0,7 kg
AC-42100
42 mm
PDF
Request
3EGF017635
Clevis end fitting D55
Ebs 05.96.79-2
with clamping cap
0,71 kg
AC-42100
55 mm
PDF
Request
