Wire clamp support

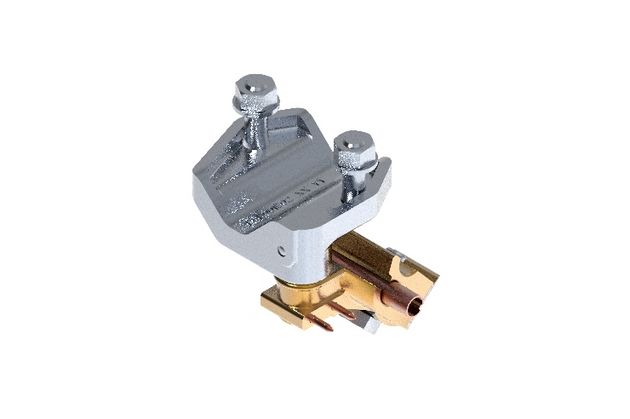

Wire clamp support D42 wire 70
3EGF011738

with protection sleeve: 3EGF002764

Material ID	Name	Ebs	Build Type	Material	Weight	Diameter	Rope Q	Rope Diameter
3EGF009140	Wire clamp support D42 wire 50	Ebs 05.93.21A	with U-bolt	AC-42100	4,96 kg	42 mm	50 mm²	17 mm	PDF	Request
3EGF011737	Wire clamp support D55 wire 50	Ebs 05.93.21B	with U-bolt	AC-42100	4,99 kg	55 mm	50 mm²	17 mm	PDF	Request
3EGF011738	Wire clamp support D42 wire 70	Ebs 05.93.21C	with U-bolt	AC-42100	4,97 kg	42 mm	70 mm²	17 mm	PDF	Request
3EGF011739	Wire clamp support D55 wire 70	Ebs 05.93.21D	with U-bolt	AC-42100	5,02 kg	55 mm	70 mm²	17 mm	PDF	Request
3EGF011740	Wire clamp support D42 wire 120	Ebs 05.93.21E	with U-bolt	AC-42100	4,97 kg	42 mm	120 mm²	17 mm	PDF	Request
3EGF011741	Wire clamp support D55 wire 120	Ebs 05.93.21F	with U-bolt	AC-42100	5,02 kg	55 mm	120 mm²	17 mm	PDF	Request
3EGF014606	Wire clamp support D42 wire 150		with U-bolt	AC-42100	4,97 kg	42 mm	150 mm²	17 mm	PDF	Request
3EGF014607	Wire clamp support D55 wire 150		with U-bolt	AC-42100	5,02 kg	55 mm	150 mm²		PDF	Request
