Clamps

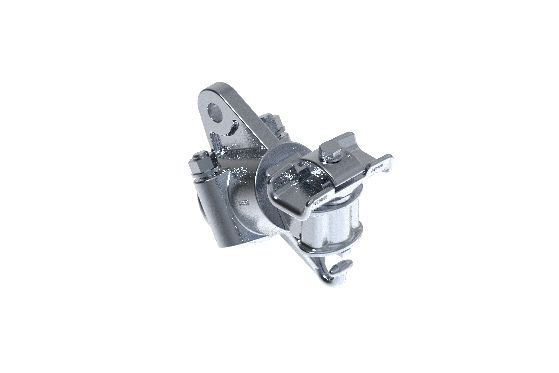

Catenary wire swivel clamp D55
3EGF020157

with hook for thimbles

Request

Variants

Material ID Name Ebs Build Type Material Weight Diameter Rope Q Rope Diameter
3EGF001225 Catenary wire swivel clamp D70 Ebs 05.86.01 A with U-bolt AC-42100 2,08 kg 70 mm 95 - 150 mm² 19 mm PDF Request
3EGF018197 Catenary wire swivel clamp D55 with U-bolt AC-42100 2,19 kg 55 mm 95 - 150 mm² 19 mm PDF Request
3EGF001337 Catenary wire swivel clamp D70 Ebs 05.96.05 A with U-bolt AC-42100 1,86 kg 70 mm 50 - 70 mm² 15 mm PDF Request
3EGF020157 Catenary wire swivel clamp D55 with U-bolt AC-42100 1,86 kg 55 mm 50 - 70 mm² 15 mm PDF Request
3EGF001418 Catenary wire swivel clamp D55 Ebs 05.96.77 A with cup point screw AC-42100 1,96 kg 55 mm 50 mm² PDF Request
3EGF001419 Catenary wire swivel clamp D55 Ebs 05.96.77 A with cup point screw AC-42100 0,626 kg 50 mm 50 - 70 mm² PDF Request
3EGF006261 Catenary wire swivel clamp insulated D55 with clamping cap AC-42100 2,84 kg 55 mm 50 - 150 mm² 20 mm PDF Request
3EGF006262 Catenary wire swivel clamp insulated D70 with clamping cap AC-42100 2,02 kg 70 mm 50 - 150 mm² 20 mm PDF Request
