Catenary wire swivel clamp, fix

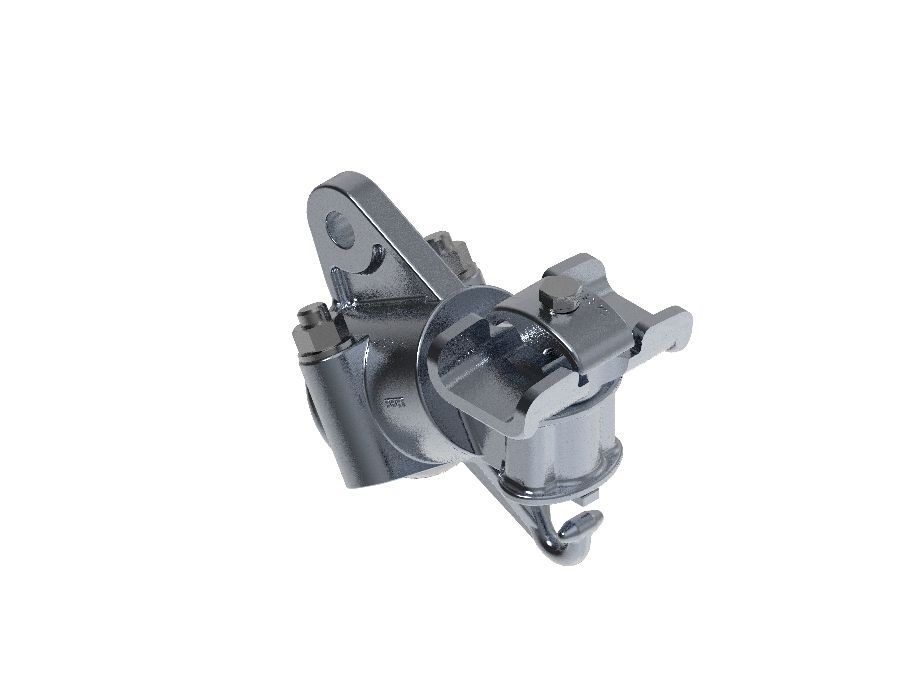

Catenary wire swivel clamp D70
3EGF001225

with hook for thimbles

Material ID	Name	Ebs	Build Type	Material	Weight	Diameter	Rope Q	Rope Diameter
3EGF001225	Catenary wire swivel clamp D70	Ebs 05.86.01 A	with U-bolt	AC-42100	2,08 kg	70 mm	95 - 150 mm²	19 mm	PDF	Request
3EGF018197	Catenary wire swivel clamp D55		with U-bolt	AC-42100	2,19 kg	55 mm	95 - 150 mm²	19 mm	PDF	Request
3EGF001337	Catenary wire swivel clamp D70	Ebs 05.96.05 A	with U-bolt	AC-42100	1,86 kg	70 mm	50 - 70 mm²	15 mm	PDF	Request
3EGF020157	Catenary wire swivel clamp D55		with U-bolt	AC-42100	1,86 kg	55 mm	50 - 70 mm²	15 mm	PDF	Request
3EGF001418	Catenary wire swivel clamp D55	Ebs 05.96.77 A	with cup point screw	AC-42100	1,96 kg	55 mm	50 mm²		PDF	Request
3EGF001419	Catenary wire swivel clamp D55	Ebs 05.96.77 A	with cup point screw	AC-42100	0,626 kg	50 mm	50 - 70 mm²		PDF	Request
3EGF006261	Catenary wire swivel clamp insulated D55		with clamping cap	AC-42100	2,84 kg	55 mm	50 - 150 mm²	20 mm	PDF	Request
3EGF006262	Catenary wire swivel clamp insulated D70		with clamping cap	AC-42100	2,02 kg	70 mm	50 - 150 mm²	20 mm	PDF	Request
