Cantilever brackets - Cantilever pole bracket

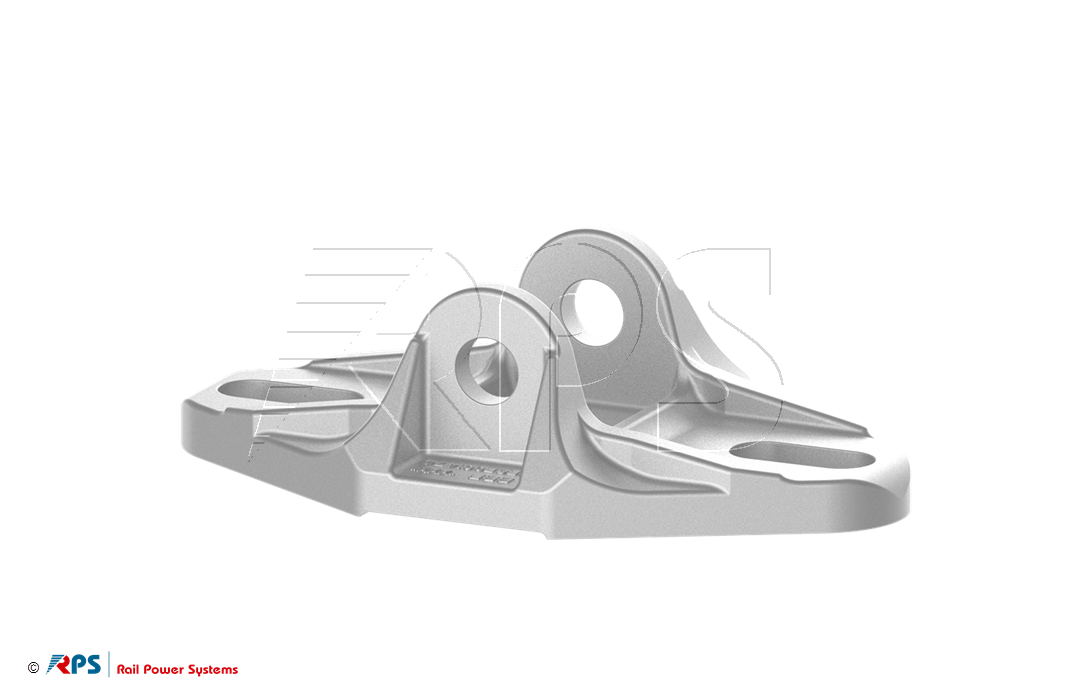

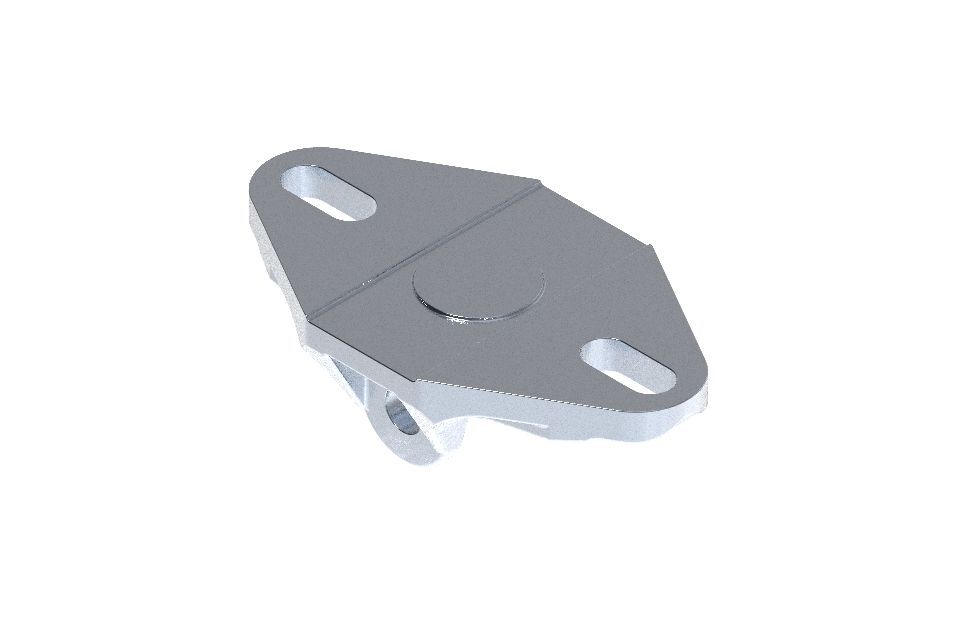

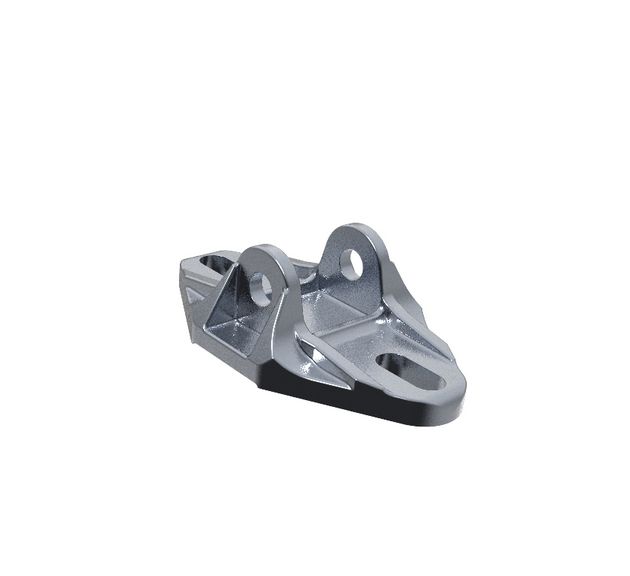

Cantilever bracket
3EGF001474

for pole and anchor rails

Material ID	Name	Ebs	Build Type	Material	Weight	Width	Diameter	Height
3EGF001474	Cantilever bracket	Ebs 05.98.35-1		AC-42100	1,01 kg	140 - 170 mm			PDF	Request
3EGF001477	Cantilever pole bracket	Ebs 05.98.37-1		EN AC-42100 KT6	0,60 kg		1 mm		PDF	Request
3EGF001489	Cantilever bracket	Ebs 05.98.50		AC-42100	0,79 kg	100 - 140 mm			PDF	Request
3EGF006880	Cantilever bracket		with pin	AC-42100	0,8 kg			126 mm	PDF	Request
3EGF001480	Cantilever bracket	Ebs 05.98.39-1		AC-42100	0,73 kg		110/120 mm		PDF	Request
