Accessories for cantilever tube
PDF

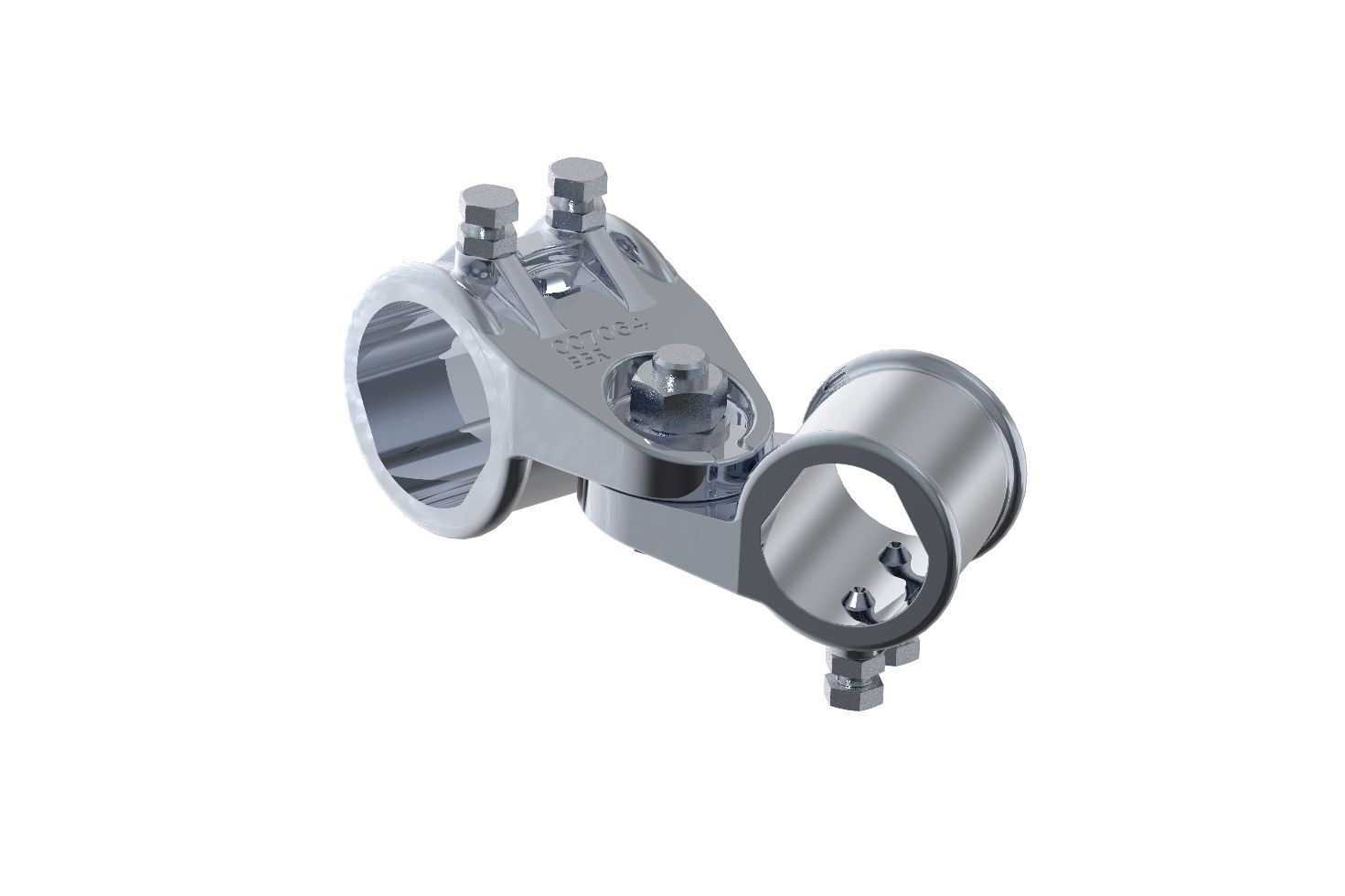

Cantilever tube connection 55/70
3EGF007082
Variants
Request
Variants
Mechanical values
Material ID
Name
Build Type
Weight
Material
Diameter
3EGF007081
Cantilever tube connection 42/55
with cup point screw
1,76 kg
AC-42100
42 / 55 mm
PDF
Request
3EGF007082
Cantilever tube connection 55/70
with cup point screw
2,01 kg
AC-42100
55 / 70 mm
PDF
Request
3EGF008865
Cantilever tube connection 55/55
with cup point screw
1,76 kg
AC-42100
55 / 55 mm
PDF
Request
3EGF009953
Cantilever tube connection 42/70
with cup point screw
1,94 kg
AC-42100
42 / 70 mm
PDF
Request
3EGF014386
Cantilever tube connection 70/70
with cup point screw
2,21 kg
AC-42100
70 / 70 mm
PDF
Request
