Wires and contact wires
PDF

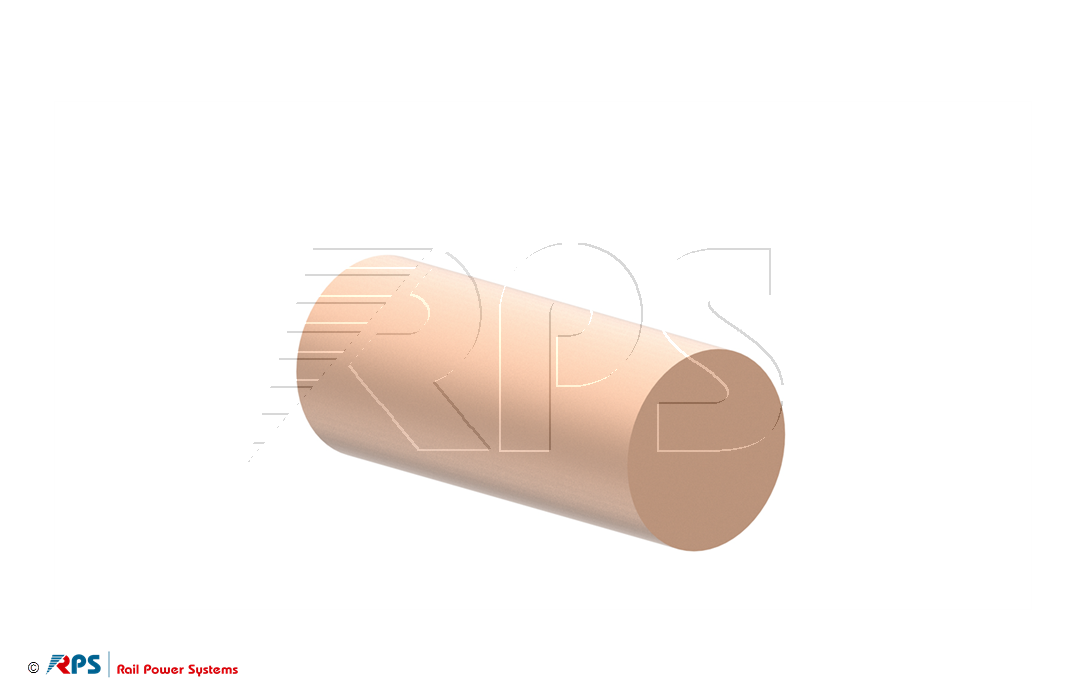

Round copper wire
3EGF002723
Variants
Request
Variants
Mechanical values
Material ID
Name
Material
Weight

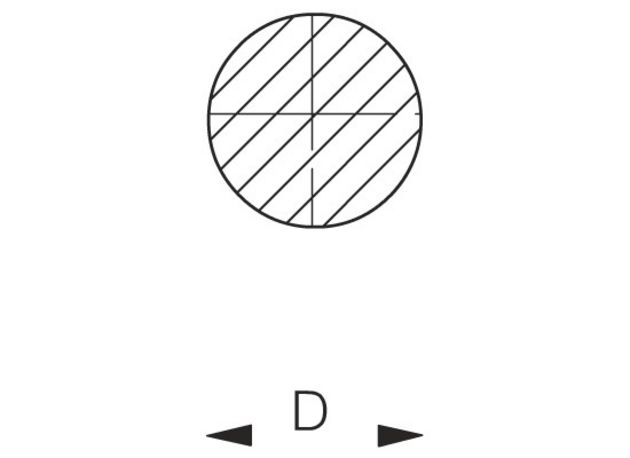

Diameter
Rope Q
Drawing Number
3EGF002723
Round copper wire
Cu
0,044 kg
2,5 mm
4,91 mm²
Ebs 20.01.01
PDF
Request
3EGF002724
Round copper wire
Cu
0,112 kg
4,0 mm
12,57 mm²
Ebs 20.01.01
PDF
Request
