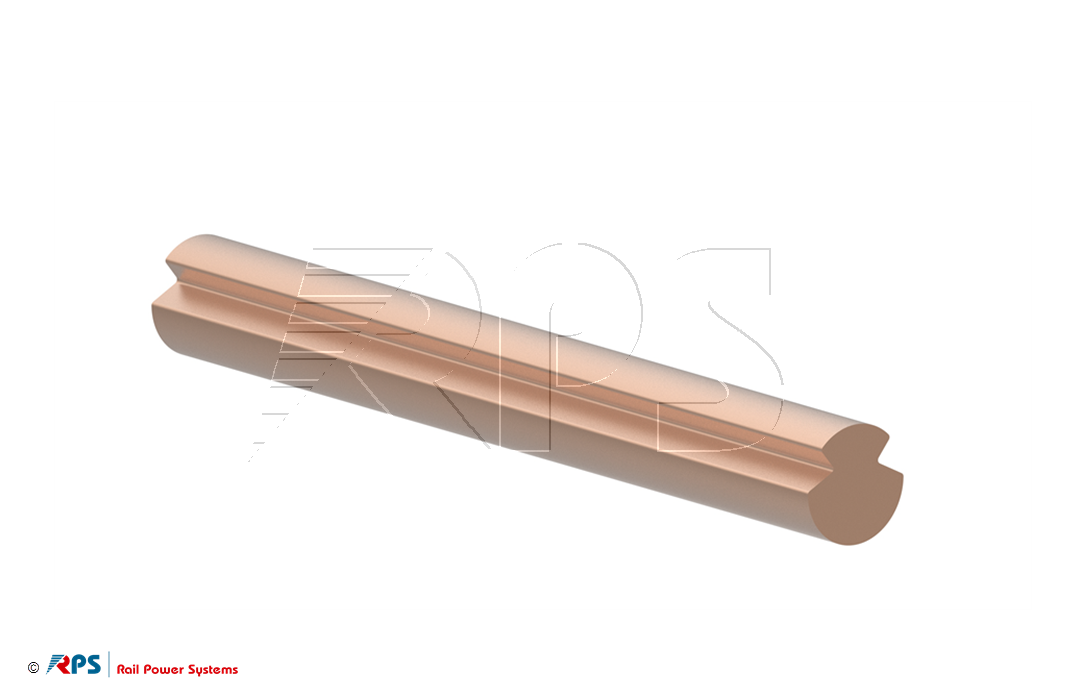

Grooved contact wire
3EGF002736

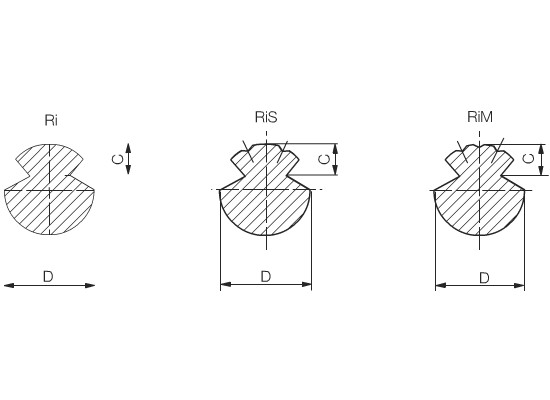

AC (Ri) made of Cu-ETP acc. to EN1977;

AC (RiS) made of CuAg0,1 acc. to EN 1977;

AC (RiM) made of CuMg0,5 acc. to EN 1977.

Variants

Material ID	Name	Material	Weight	Build Type		Diameter	Tear Strength	Drawing Number
3EGF002736	Grooved contact wire	Cu	0,71 kg	AC80 Cu (Ri 80)		10,6 mm	355	Ebs 20.01.03	PDF	Request
3EGF002737	Grooved contact wire	Cu	0,89 kg	Ri 100		12,0 mm	350	Ebs 20.01.03	PDF	Request
3EGF002738	Grooved contact wire	Cu	1,07 kg	Ri 120		13,2 mm	330	Ebs 20.01.03	PDF	Request
3EGF002739	Grooved contact wire	Cu	0,71 kg	RiS 80		10,6 mm	365	Ebs 20.01.03	PDF	Request
3EGF002740	Grooved contact wire	Cu	0,89 kg	RiS 100		12,0 mm	360	Ebs 20.01.03	PDF	Request
3EGF002741	Grooved contact wire	Cu	1,07 kg	RiS 120		13,2 mm	350	Ebs 20.01.03	PDF	Request
3EGF008968	Grooved contact wire	Cu	1,07 kg	RiM 120		13,2 mm	490	Ebs 20.01.03	PDF	Request
3EGF011800	Grooved contact wire	Cu	1,34 kg	Ri 150		14,8 mm	320	Ebs 20.01.03	PDF	Request
