Tubes and pipes
PDF

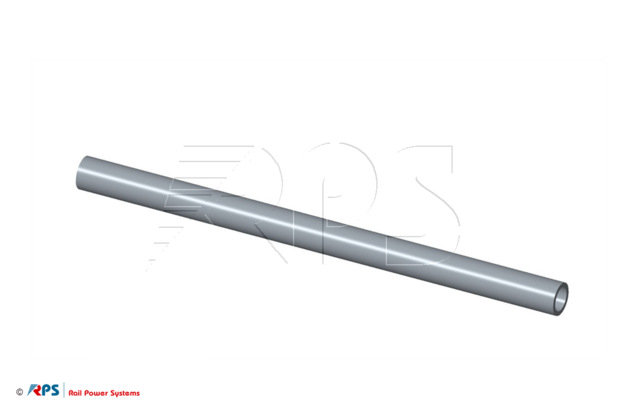

Tube
3EGF011706
Variants
Request
Variants
Mechanical values
Material ID
Name
Material
Weight
Diameter
S
Drawing Number
3EGF002862
Tube
St-tzn
0,246 kg
32 mm
3,5 mm
DIN 2391
PDF
Request
3EGF003795
Tube
St-tzn
0,194 kg
26 mm
3,5 mm
DIN EN 10305-1
PDF
Request
3EGF011706
Tube
E355 tZn, St-tzn
1,586 kg
26 mm
3,5 mm
DIN 2391, Ebs 20.20.07
PDF
Request
