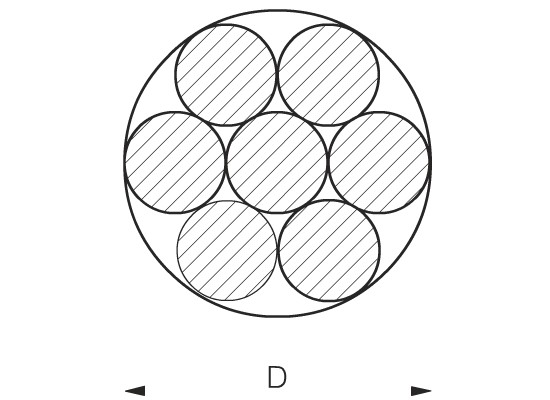

Multistrand copper wire (DIN 48 201)

Wire
3EGF002717

Material ID	Name	Material	Weight	Diameter	Rope Q	Drawing Number
3EGF011803	Wire	Cu-ETP	0,447 kg	9,0 mm	50 mm²	DIN 48 201	PDF	Request
3EGF011804	Wire	Cu-ETP	1,651 kg	17,5 mm	185 mm²	DIN 48 201	PDF	Request
3EGF011805	Wire	Cu-ETP	2,208 kg	20,2 mm	240 mm²	DIN 48 201	PDF	Request
3EGF011811	Wire	Cu-ETP	0,438 kg	9,0 mm	50 mm²	DIN 48 201	PDF	Request
3EGF002715	Wire	Cu-ETP	0,596 kg	10,5 mm	70 mm²	Ebs 20.01.01	PDF	Request
3EGF002716	Wire	Cu-ETP	0,845 kg	12,5 mm	95 mm²	Ebs 20.01.01	PDF	Request
3EGF002717	Wire	Cu-ETP	1,060 kg	14,0 mm	120 mm²	Ebs 20.01.01	PDF	Request
3EGF002718	Wire	Cu-ETP	1,337 kg	15,8 mm	150 mm²	DIN 48 201	PDF	Request
